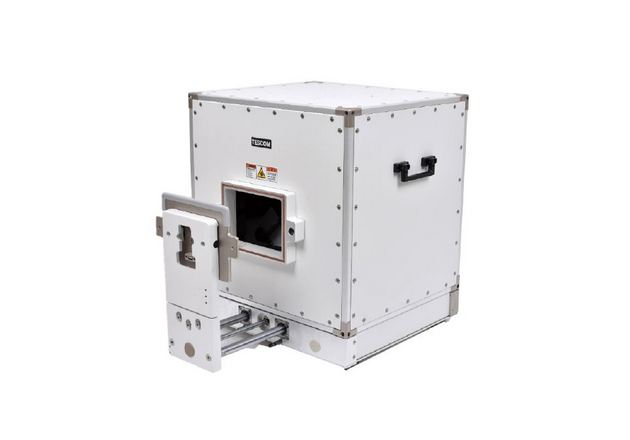

TESCOM TC-5955AP 공압 실드 박스

  • 생산업체:Tescom
    Model: TC-5955AP
    출처: Korea
    보증: 12 Month
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

◈ Mechanical Specifications

Basic RF Connectors without I/O Interface module: 16, N(f) outside to SMA(f) inside

Basic Data Connector : None

Remote control : RS-232C, 3 wire, DB9(s)

Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

Dimension

- Outside:   534(W) x 526(D) x 583(H) mm, door closed. 786(D) mm, door open

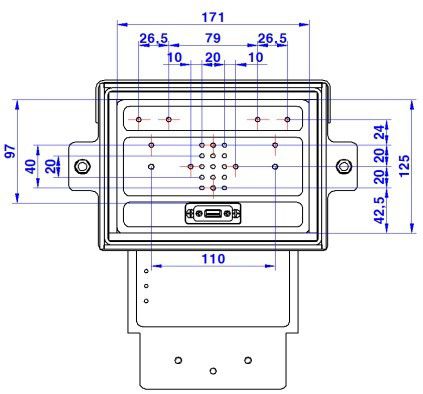

- Door Size : 176(W) x 130(H) mm

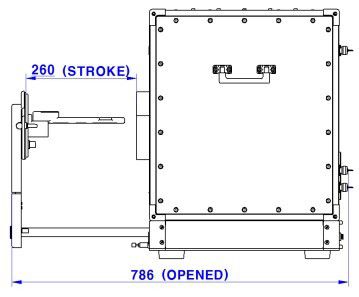

- Door Stroke (Open/Close) : 260 mm

Weight : Approx.39 kg

Packing

- Size :  680 (W) x 640(D) x 730(H) mm

- Weight : Approx.46kg

The size or weight of a package may vary on how to pack a package.

Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 60 dB

- 2000 to 3000 MHz : > 60 dB

- 3000 to 6000 MHz : > 60 dB

Details

Datasheet


Features

◈ Reliable High RF Shielding up to 6 GHz

◈ Designed for long life

◈ Specifically designed for various types of mobile phones

◈ Pneumatic control of lid open-close

◈ Absorbing materials for stable measurement results

◈ EMI filters on all data ports and power line

◈ Remote operation by RS-232C

Dimensions

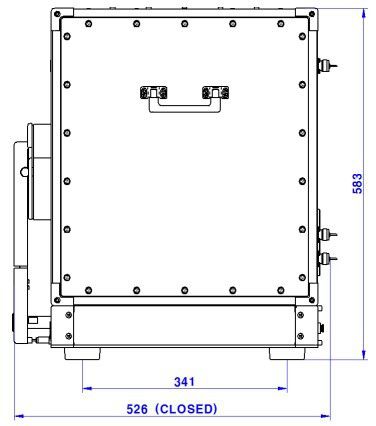

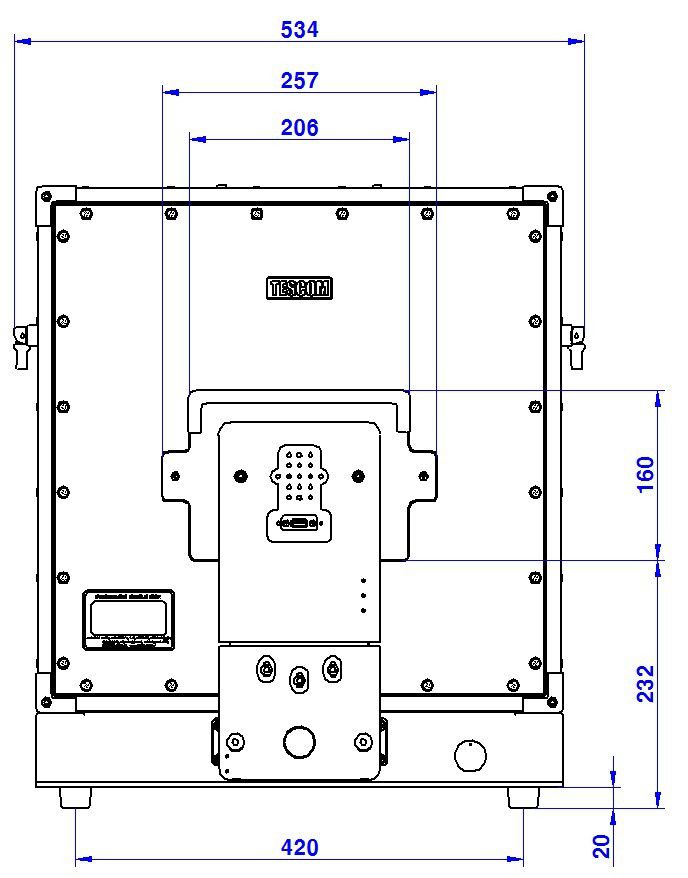

TC-5955AP Outer Dimension

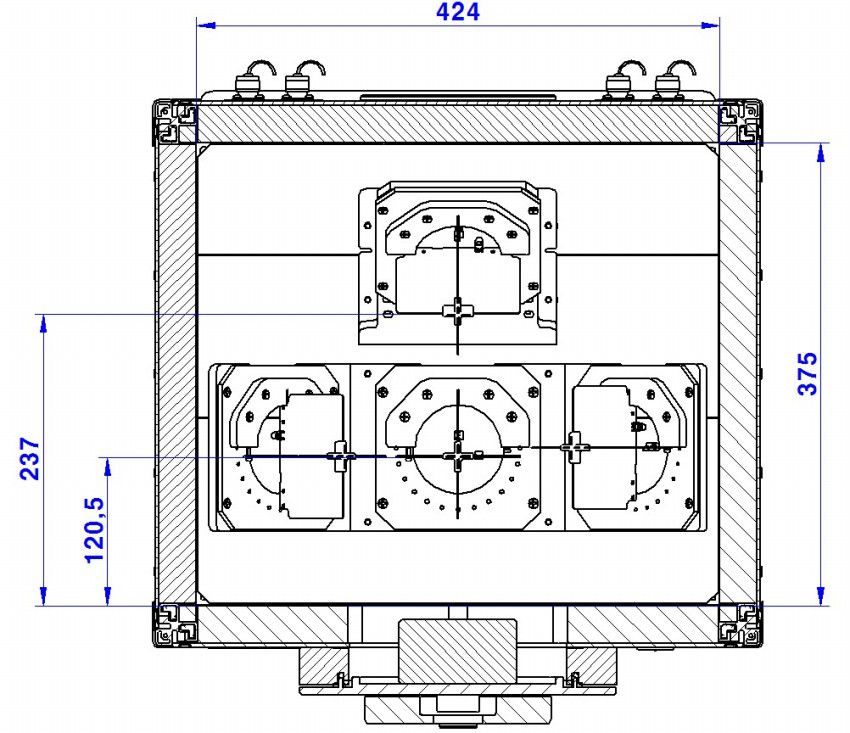

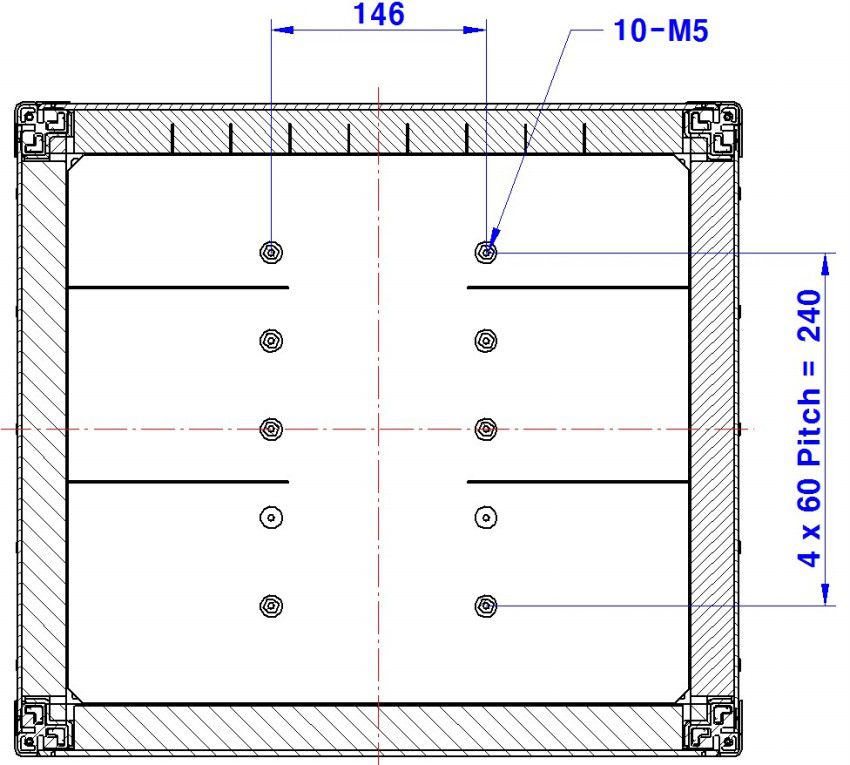

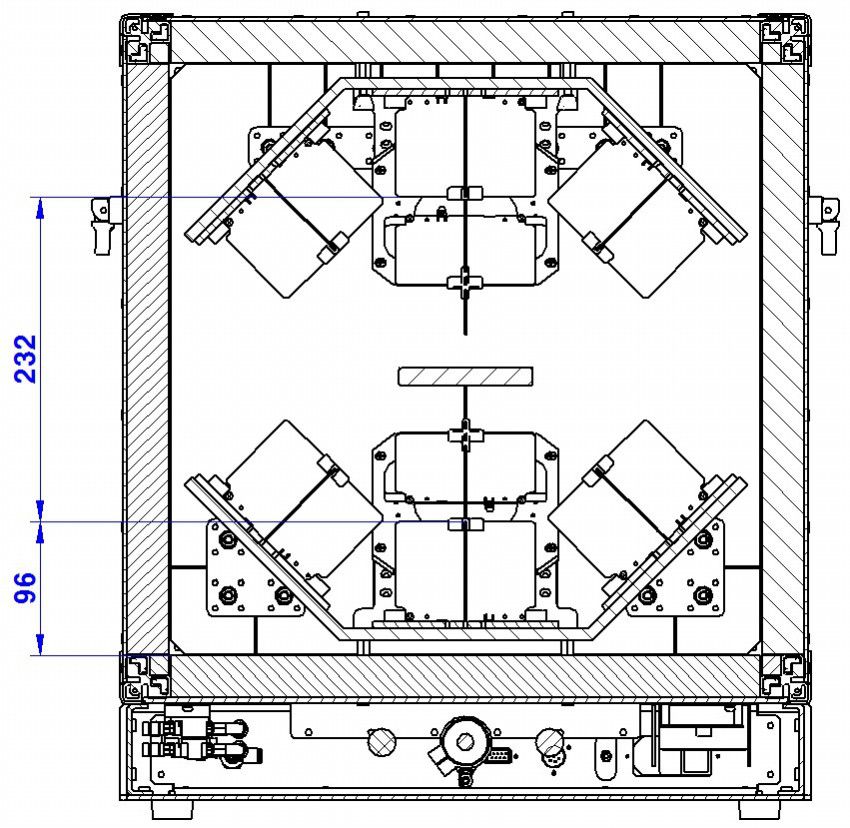

TC-5955AP Inner Dimension
