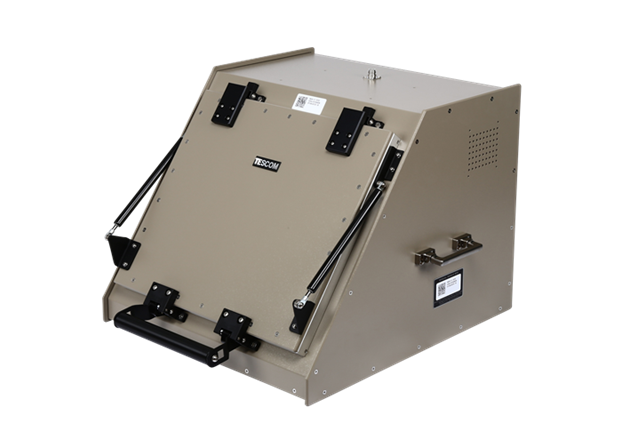

TESCOM TC-5972D 파 테스트 챔버

  • 생산업체:Tescom
    Model: TC-5972D
    출처: Korea
    보증: 12 Month
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

◈ Mechanical Specifications

Basic I/O connectors

RF connectors: four(4) N(f) outside and SMA(f) inside

Dimensions

- Inside : 445(W) x 450(D) x 338(H) mm, 208(D) mm Top side.

- Outside : 562(W) x 647(D) x 450(H) mm, lid closed. 715(H) mm, lid open.

Weight : Approx. 28 kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 640(W) x 830(D) x 580(H) mm

- Weight : Approx. 36 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

◈ Absorber Reflectivity

Measured the reflected signal from the absorber with metal plate using the VNA.

Frequency / Reflectivity (dB)

- 500 to 2000 MHz : 15 dB(Typ.)

- 2000 to 6000 MHz : 20 dB(Typ.)

Details

Datasheet


Key Features

◈ High RF Shielding

◈ Easy Opening/Closing of lid

◈ EMI filters on all Data and DC lines

◈ High performance absorber for radiation testing

◈ Customizable Data connections

◈ Door safety function when the door opens and closed

Dimensions

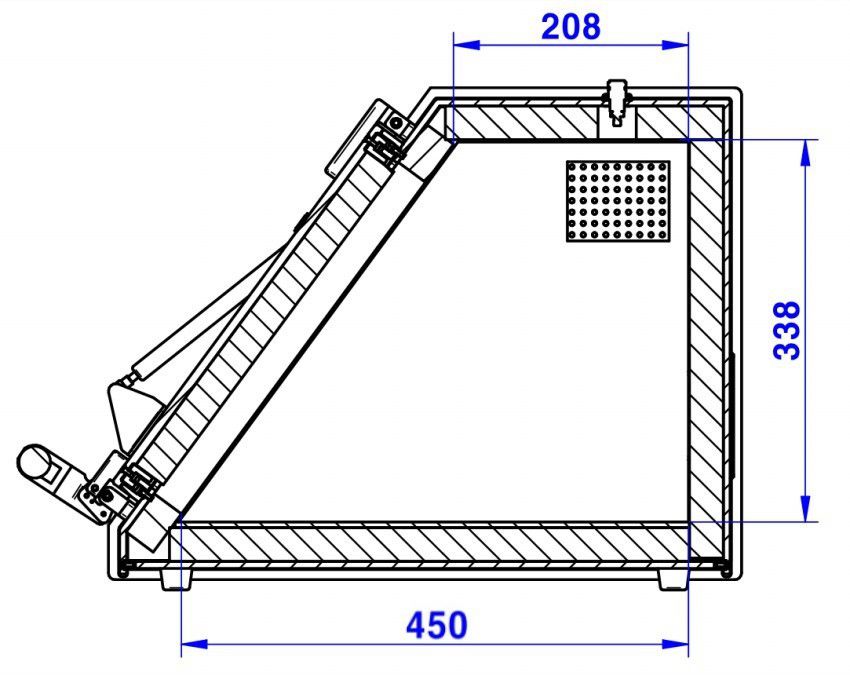

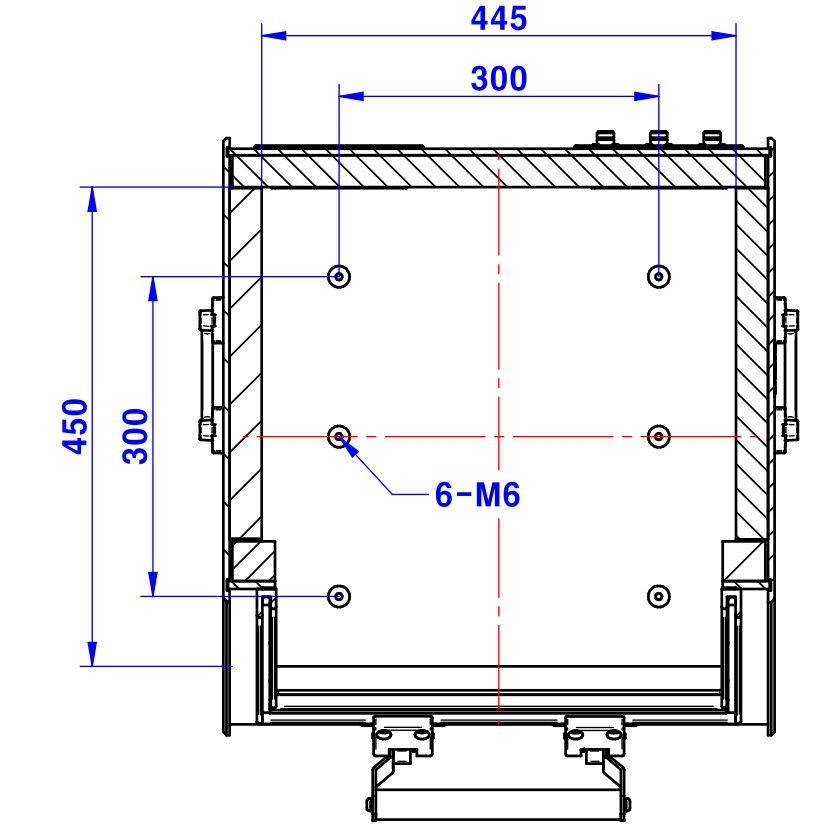

TC-5972D Inner Dimension

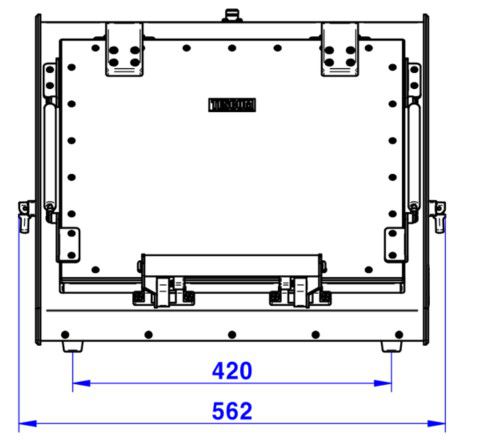

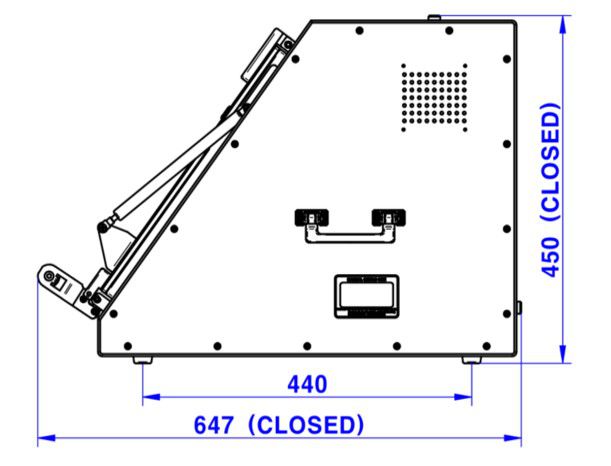

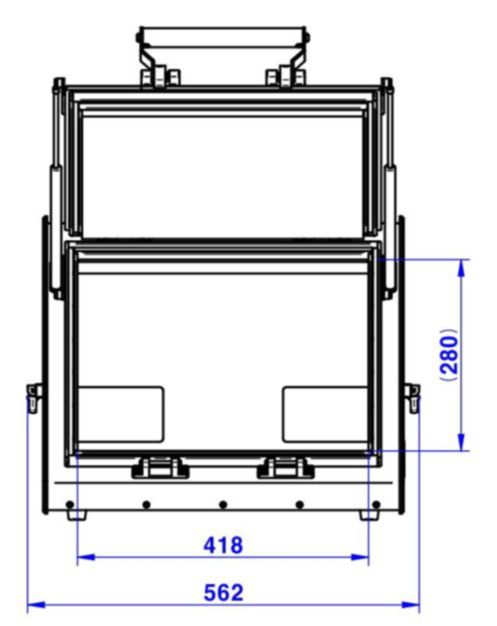

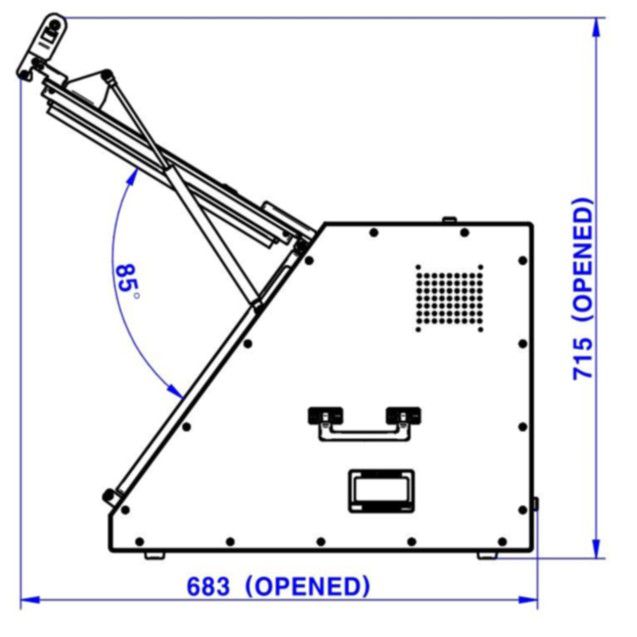

TC-5972D Outer Dimension
