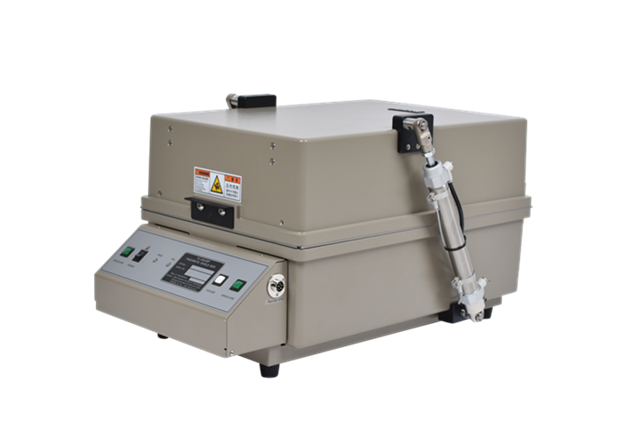

TESCOM TC-5922BP 공압 실드 박스

  • 생산업체:Tescom
    Model: TC-5922BP
    출처: Korea
    보증: 12 Month
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

◈ Mechanical Specifications

※ RF Connectors without I/O interface panel : two(2) N(f) outside and SMA(f) inside

※ Input voltage :  24VDC

※ Power Consumption: Max 1.5 W

※ Remote control : RS-232C, 3 wire, DB9(s)

※ Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Fixture control connector connector : 4 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

※ Dimension

- Inside :  296(W) x 435(D) x 238(H) mm

- Outside :417(W) x 601(D) x 332(H) mm, lid closed. 623(H) mm, lid open.

※ Weight : Approx. 27 kg

※ Packing

- Size : 560(W) x 820(D) x 480(H) mm

 - Weight : Approx.33kg

The size or weight of a package may vary on how to pack a package.

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

Details

Datasheet


Manual




- Key Features

High RF Shielding

Pneumatic control of lid open-close and optional test fixture motions

EMI filters on all Data and DC lines

Easily customizable to meet various test needs

Red and Green LED’s for Pass/Fail indication

RS-232C Remote Control

- Dimension

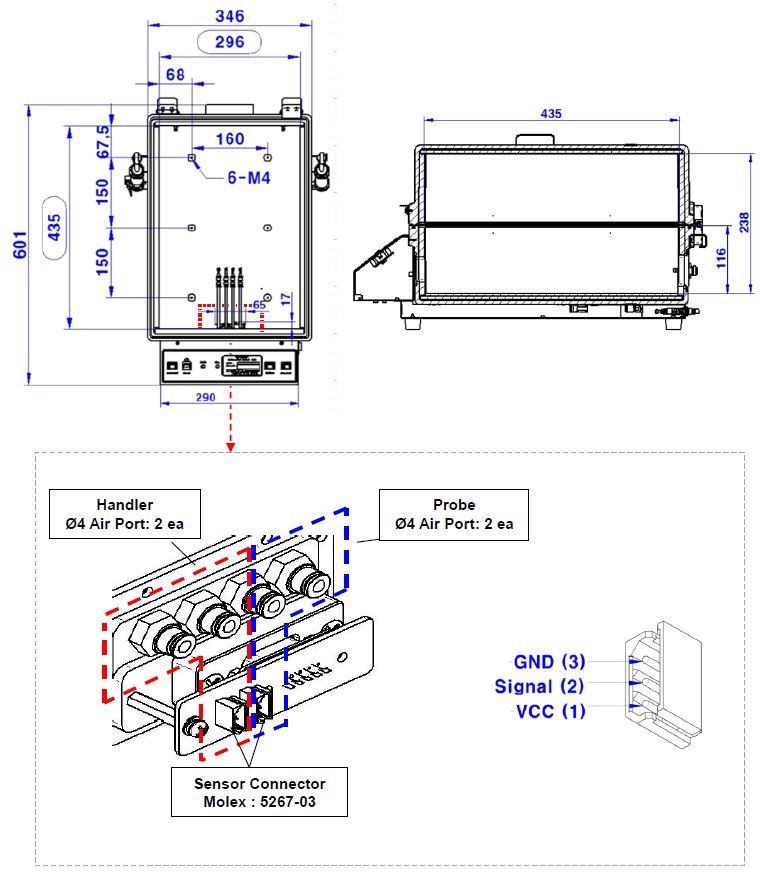

TC-5922BP Inner Dimension

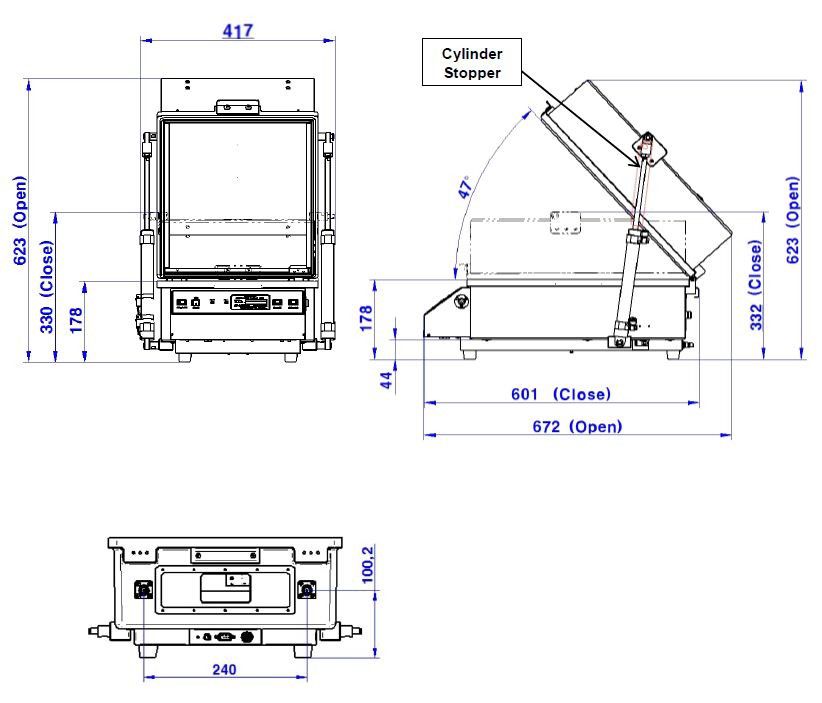

TC-5922BP Outer Dimension
