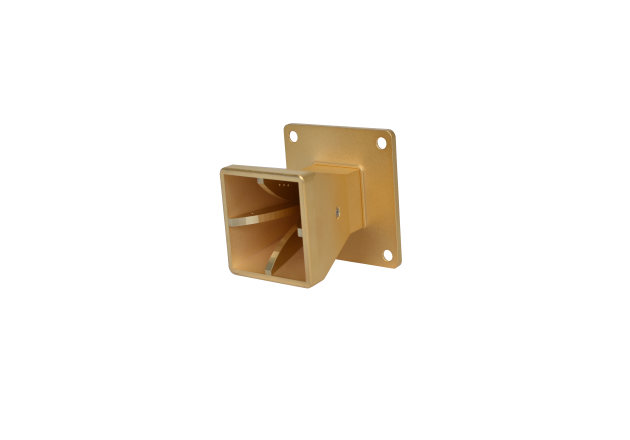

Tescom TC-93470A 피라미드형 스피커 안테나 (18-40GHz)

Configurations

- Antenna Type : QRH (Quad Ridged Horn)

- Frequency Range : 18 GHz to 40 GHz

- RF Connector

+ Connector type : 2.92 mm (K-Type) Female

+ Body Material and Plating : Stainless Steel

Electrical Specifications

- Frequency Range : 18 GHz to 40 GHz

- Normal Gain, dBi : 14.5 dBi @ 28GHz

- VSWR : < 2

- Impedance : 50 Ω

- Cross Port Isolation : < -20 dB

Mechanical Specifications

+ Size(mm) : 70(L) x 54(W) x 54(H)

+ Weight : approx. 313 g


Detail

Datasheet


Key Features

- 18 ~ 40GHz Frequency Range

- K-Type 2.92mm Female RF Interface

Typical Performance Data
