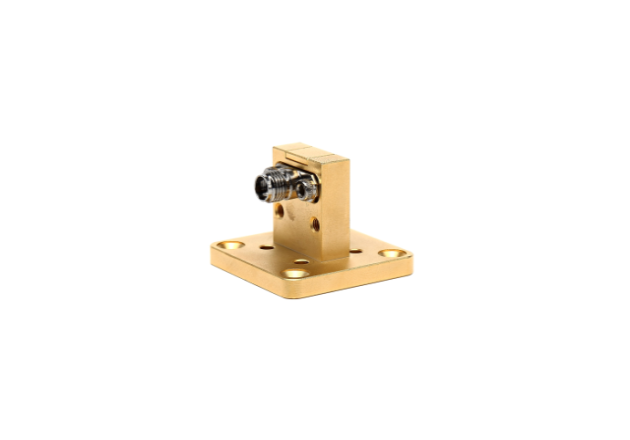

Tescom TC-93480A 도파관 어댑터 (26.5 ~ 40GHz)

  • 생산업체:Tescom
    Model: TC-93480A
    출처: Korea
    보증: 12 Month
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 바로 구매하기
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Configurations:

- EIA Waveguide : WR-28

- Frequency Range: 26.5 GHz to 40 GHz

- RF Connector

+ Connector type: 2.92 mm (K-Type) Female

+ Body Material and Plating: Stainless Steel

Electrical Specifications:

- Frequency Range 26.5 GHz to 40 GHz

- Insertion Loss <0.4 dB

- VSWR < 1.7

- Impedance: 50 Ω

Mechanical Specifications:

Size (mm): 24(L) x 32(W) x 32(H)

Weight: approx. 46 g


Details

Datasheet


- Features:

Ka Band 26.5 GHz ~ 40 GHz Frequency Range

K-Type 2.92 mm Female RF Interface

WR-28 Waveguide Interface with Precision Tolerance FBP320 flange

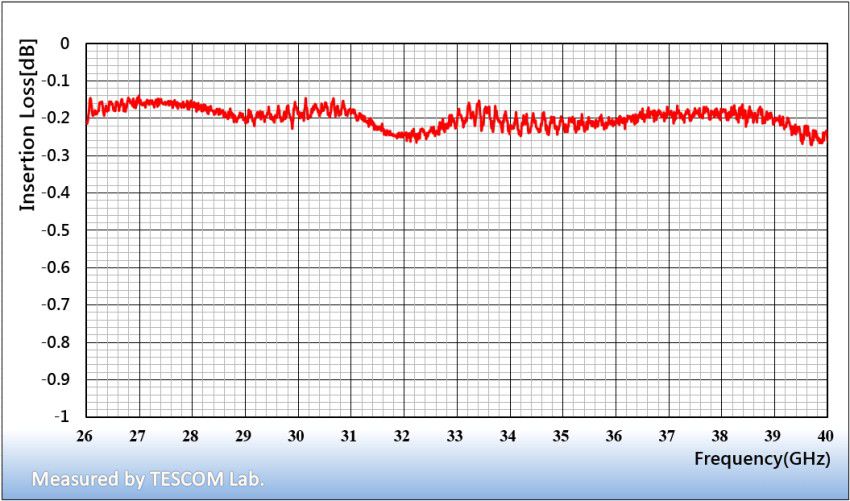

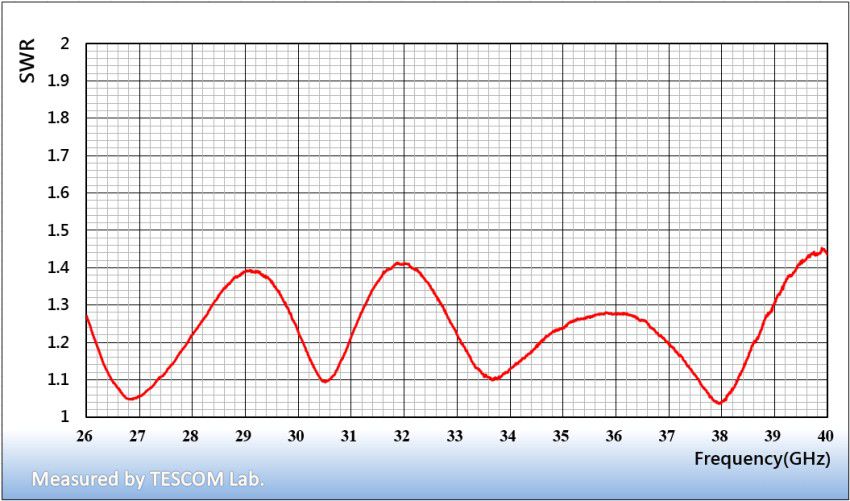

- Typical Performance Data
