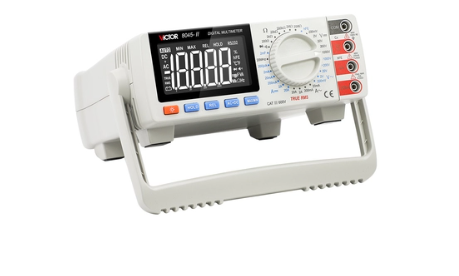

VICTOR VC8045-II 벤치형 DMM (1000VDC, 750VAC, 20ACA/DCA, True RMS)
생산업체: VICTOR Model: VC8045-II - 연락처
DC Voltage: 200mV/2V/20V/200V/1000V ±(0.05%+3)
AC Voltage: 200mV/2V/20V/200V/750V ±(0.8%+80)
DC Current: 20mA/200mA/2A/20A ±(0.35%+10)
AC Current: 200mA/2A/20A ±(0.8%+80)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.1%+5)
Frequency: 20KHz/200KHz ±(1.0%+20)
Capacitance: 20nF/2uF/200uF ±(3.5%+20)
Features
Diode test √
Triode test √
Continuity buzzer √
Overload protection √
Input impedance: 10MΩ
AC frequency response: 3 times/s
Sampling rate: 40~50kHz
Operation way: Manual range
Max. Display: 19999
Power Supply: AC220V; 110V 50Hz/60Hz
Standard Accessories: Test Lead; Manual; Power Cable
