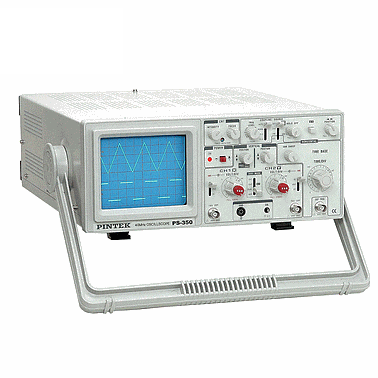

Máy hiện sóng tương tự PINTEK PS-350
Hãng sản xuất: PINTEK Model: PS-350 Xuất xứ: Taiwan (Đài Loan) - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Kiểu màn hình : CRT
Khu vực hiện thị : 8 x 10 div
Điện áp phóng : 2.1kV
1) Trục đứng
Độ chính xác : ±3 % ( X1 mode ). ± 5 % ( X5 mode ).
Độ nhạy : 5 mV / div to 5 V / div ( X1 mode ).
1 mV / div to 1 V / div ( X5 mode )
Trở kháng đầu vào : 1 MΩ ± 2 %
Tần số phản hồi : 5 mV to 5 V / div ( CAL ):DC to 40 MHz (-3 dB). 1 mV / div : DC to 15 MHz (-3 dB).
Rise time : Dưới 8.8 nS
Điện áp vào max : 400V dc+ac peak.
2) Trục ngang
Độ nhạy : 1mv/div to 5v/div
Độ chính xác : Y-Axis: ±3%. X-Axis: ± 6%.
Tần số phản hồi : DC ~ 1Mhz
Dịch pha X-Y : ±3°
3) Quét
Tốc độ quét : 0.1 μs/div to 2S/div
Độ chính xác : ±3 %
4) Trigger
Nguồn : CH1, CH2, ALT, EXT, LINE
Trigger coupling : Auto or Norm
5) Tham số khác
Hiệu chuẩn điện áp : 1Khz, xung vuông, 2 Vpp
Kích thước : 324x132x398mm, 7.8kg
Nhiệt độ hoạt động : 0°C-35°C, 10-80% R.H.
Phụ kiện : Máy chính, Que đo, HDSD
PS-350
CRT Type: Display Area : Accelerating Voltage : Phosphor : |
Rectangular with integral graticule. 8 x 10 div ( 1 div = 1 cm) 2.1 kV P31. |
VERTICAL AMPLIFIERS ( CH 1 and CH 2 ) |
|
Accuracy : | ± 3 % ( X1 mode ). ± 5 % ( X5 mode ). |
Sensitivity : | 5 mV / div to 5 V / div ( X1 mode ). 1 mV / div to 1 V / div ( X5 mode ). 1-2-5 sequence, 10 step attenuator. Vernier control provides fully adjustable attenuation between steps. |
Input Resistance: Input Capacitance: |
1 MΩ ± 2 % 25 pF ± 10 pF. |
Frequency Response: | 5 mV to 5 V / div ( CAL ):DC to 40 MHz (-3 dB). 1 mV / div : DC to 15 MHz (-3 dB). |
Rise Time: | Less then 8.8 nS |
Operaing Modes: | CH1: CH 1, single trace. CH2: CH 2, single trace. ALT: dual trace, alternating. CHOP: dual trace, chopped. ADD: algebraic sum of CH 1 + CH 2. |
Polarity Reversal (Invert): | CH 2 only. |
Maximum Input Voltae: | 400 V dc + ac peak. |
HORIZONTAL AMPLIFIER | ( Input through channel 1 input ) |
Sensitivity: | 1mv/div to 5v/div |
Accuuacy: | Y-Axis: ±3%. X-Axis: ± 6%. |
Input Impedance: | 1MΩ //25PF |
Frequency Response: | DC to 1 MHz typical ( -3 dB ). |
Maximum Input Voltage: | 400V dc+ac pack |
X-Y Phase Difference: | Approximately ±3° at 50 kHz. |
SWEEP SYSTEM |
|
Sweep Speed: | 0.1 μs/div to 2S/div in 1-2-5 sequence, 23 steps. Vernier control porvides fully adjustable sweep time between steps. |
Accuracy: | + / -3 %. |
Sweep Magnification: | 10X, ±10%( 2S/DIV - 0.2 μS/DIV). extend sweep speed up to 10nS/DIV. |
Sweep Display Mode: | Main, Mix, Delay. |
Hold Off Time: | Continuously adjustable from NORM to 5 times normal |
TRIGGERING |
|
Trigger Coupling: | AUTO ( free run ) or NORM |
Trigger Source: | CH1, CH2, ALT, EXT, LINE |
Maximum External Trigger Voltage: | 300 V dc + ac peak. |
Trigger Coupling: | AC : 30 Hz to 40 MHz. TV - H (AC): Used for triggering from horizontal sync pulses. TV - V : (DC) Used for triggering from vertical sync pulses. |
Trigger Sensitivity: | Internal: 0.5 division ( 1 division with TV Coupling ). External: 500 mV. |
OTHER SPECIFICATIONS |
|
Calibrating Voltage: | 1 kHz ( nominal ) Positive Square Wave, 2.0 V p-p ( ± 3% ) |
Trace Rotage: | Electrical, front panel adjustable. |
Power Requirements: | Max. 6 Vrms ( open circuit ). |
Dimensions: | 324 x 132 x 398 mm ( 12.8 x 5.2 x 15.6" ). |
Weight: | Approximately 7.8 kg ( 17.2 1bs ). |
Rated Range of Use | 10°C-35°C, 10-80% R.H. |
Limits of Operation: | 0°C-50°C, 10-80% R.H |
Storage Environment | -30°C-70°C, 10-90% R.H. |
C E STANDARD: | E.M.C. Regulations-1992 ( E.C. Directive 89/336/EEC ) EN 50081-1 Emissions. EN 50082-1 Immunity. |
