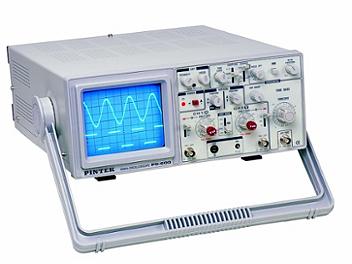

Máy hiện sóng tương tự Pintek PS-600 ( 60MHz, 2Channel)

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Hãng sản xuất : Pintek - Taiwan
Xuất xứ : Taiwan

60MHz DUAL TRACE, DUAL TRIGGER.
VERT SENSITIVITY FROM 1mV/DIV TO 15V/DIV.
SWEEP RATE FROM 10nS/DIV TO 2S/DIV.
HOLD-OFF, X-Y OPERATION.
CE, TUV GS, UL, CUL, IEC1010.




CRT:

Type : Rectangular with integral graticule.
Display Area : 8 x 10 div ( 1 div = 1 cm )
Accelerating Voltage : 12 kV.
Phosphor : P31.
VERTICAL AMPLIFIERS ( CH 1 and CH 2 )
Sensitivity : 5 mV / div to 5 V / div ( X1 mode ).
1 mV / div to 5 V / div ( X5 mode ).
1-2-5 sequence, 10 step attenuator.
Vernier control provides fully adjustable
attenuation between steps.
Accuracy : ± 3 % ( X1 mode ).
± 5 % ( X5 mode ).
Input Resistance: 1 MΩ ± 2 %.
Input Capacitance: 25 pF ± 10 pF.
Frequency Response: 5 mV to 5 V / div ( CAL ):DC to
60 MHz (-3 dB).1 mV / div (CAL):
DC to 20 MHz (-3 dB)
Rise Time: Approximately 5.8 ns.
Operaing Modes:
CH1: CH 1, single trace.
CH2: CH 2, single trace.
ALT: dual trace, alternating.
CHOP: dual trace, chopped.
ADD: algebraic sum of CH 1 + CH 2.
Polarity Reversal ( Invert ): CH 2 only.
Maximum Input Voltage: 400 V dc + ac peak.
HORIZONTAL AMPLIFIER ( Input through channel 1 input )
X-Y mode: switch selectable using X-Y switch.
CH 1: X axis.
CH 2: Y axis.
Sensitivity: 1mv/div to 5v/div
Accuracy:
Y-Axis:  ± 3%.
X-Axis: ± 6%.
Input Impedance: 1MΩ ± 2% 25PF
Frequency Response: DC to 1 MHz typical ( -3 dB ).
X-Y Phase Difference: Approximately 3° at 50 kHz.
Maximum Input Voltage: 400V dc+ac pack
SWEEP SYSTEM
Sweep Speed: 0.1 μs/div to 2S/div in 1-2-5 sequence, 23 steps.
Vernier control porvides fully adjustable sweep
time between steps.
Accuracy: ± 3 %.
Sweep Magnification: 10X, ± 10%
Holdoff: Continuously adjustable from NORM to 5 times normal.
TRIGGERING
Trigger Modes: AUTO ( free run ) or NORM.
Trigger Source: CH 1, CH 2, ALT, EXT, LINE.
Maximum External Trigger Voltage: 300 V dc + ac peak
Trigger Coupling:
AC : 30 Hz to 60 MHz
TV-H : Used for triggering from horizontal sync pulses.
TV-V : Used for triggering from vertical sync pulses.
Trigger Sensitivity:
Internal: 0.5 division ( 1 division with TV Coupling ).
External: 500 mV.
OTHER SPECIFICATIONS
Calibrating Voltage: 1 kHz ( nominal ) Positive Square Wave,
2.0 V p-p ( ± 3% )
Trace Rotage: Electrical, front panel adjustable.
Power Requirements: 115/230 VAC ± 10%, 50 / 60 Hz,
approximately 40 W.
Dimensions: 324 x 132 x 398 mm ( 12.8 x 5.2 x 15.6" )
Weight: Approximately 7.8 kg ( 17.2 1bs )
Rated Range of Use: 10° C-35° C, 10-80% R.H.
