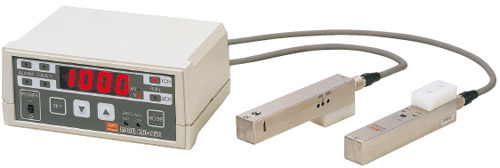

Thiết bị giám sát tĩnh hai kênh Kasuga KSD-0120
Hãng sản xuất: KASUGA Model: KSD-0120 - Yêu cầu báo giá
- Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Phạm vi hiển thị:
+ Phạm vi 1: ± 1 - ± 1999V
+ Phạm vi 2: ± 0,01 - ± 19,99kV
Đầu ra tương tự: 0 - ± 5V
Cài đặt điều khiển: Cài đặt độc lập của hai kênh
Đầu ra điều khiển: Bộ thu mở (đầu ra cài đặt điều khiển và đầu ra lỗi cảm biến)
Nguồn điện: Bộ chuyển đổi AC 24-24 hoặc AC chuyên dụng (AC100V, phải mua thêm)
Tiêu thụ hiện tại: 500mA (dc - 24V)
Môi trường hoạt động: Nhiệt độ: 0 ° C-40 ° C, Độ ẩm: 65% RH trở xuống (không ngưng tụ)
Khối lượng: Khoảng. 580 g (bao gồm cả khung đính kèm)
Features
- This single unit can be connected with wide potential sensors (KS-2100) via up to two channels, allowing building of a static monitoring system at low cost.
- Since the sensor is small, it can be installed in a narrow space inside a manufacturing device for continuous monitoring.
- Permits alarm setting, which means it can be interlocked with all types of manufacturing devices so that alarm signals are transmitted to the device when the set value is exceeded.
- Comes equipped with a newly developed circuit for failure diagnosis of the surface potential sensor, meaning it quickly detects failure of the sensor due to shock, etc. and outputs signals indicating the failure to an external device.
- Can also be used to check the effectiveness of an ionizer or for its management.
- Permits switching between ranges, allowing measurement over a wide range from low potential to high potential.
Intended use
- Monitoring of charge quantity in the production process of flat-panel displays
- Monitoring of charge quantity of semiconductor wafers
- Monitoring of charge quantity during a process of handling LSIs or conveyance of printed wiring boards
Configurations
Items | Model | Comments |
---|---|---|
Main unit | KSD-0120 | |
Attachment bracket | Comes with the main unit | |
Sensor | KS-2100 | Optional, up to two sensors can be used |
Dedicated AC adapter | AC adapter for KSD-0120 | Options |
Specifications
Main unit
Model | KSD-0120 |
---|---|
Display range |
Range 1: ±1 - ±1999V Range 2: ±0.01 - ±19.99kV |
Analog output | 0 - ±5V |
Control setting | Independent settings of two channels |
Control output | Open collector (control setting output and sensor failure output) |
Power supply | DC12-24V or dedicated AC adapter (AC100V, optional) |
Consumption current | 500mA(DC12 - 24V) |
Operating environment | Temperature: 0°C-40°C,Humidity: 65% RH or below (no condensation) |
Mass | Approx. 580 g (including attachment bracket) |
Dedicated AC adapter(Options)
Model | AC adapter for KSD-0120 |
---|---|
Input conditions | AC100V 50/60Hz |
Output voltage | DC12V |
Cable length | 1580mm |
Mass | Approx. 385 g |
Sensor (optional)
Model | KS-2100 |
---|---|
Detection method | Vibration-type static sensor |
Measuring ranges |
Range 1: ±1 - ±2000V Range 2: ±0.01 - ±20.00kV |
Analog output | 0 - ±5V |
Measurement precision | Within ±10% |
Standard measurement distance |
Range 1: 10 mm Range 2: 50 mm |
Alarm | LED lamp indication and external output of sensor failure |
Power supply | Supplied by KSD-0120 |
Operating environment | Temperature: 0°C-40°C,Humidity: 65% RH or below (no condensation) |
Mass | Approx. 100 g (not including cable) |
Accessories | Dedicated 5 m cable (can be extended to 100 m) |
Dimensions [mm] and names of parts
Main unit
Sensor
