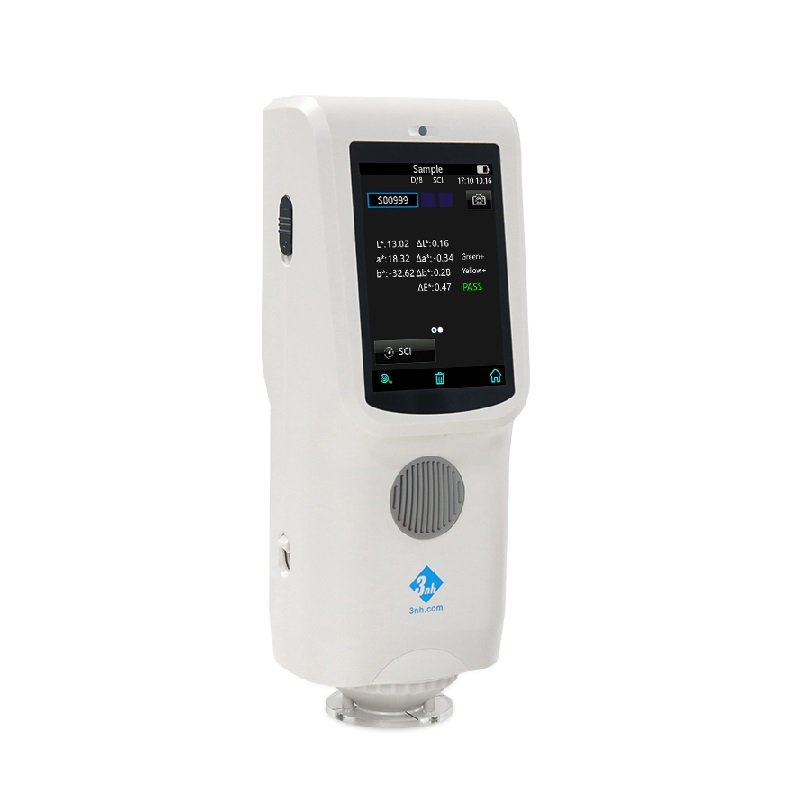

3nh TS7030 Portable Spectrocolorimeter (400~700nm)

Integrating Sphere Size: Φ40mm

Light Source: Combined full spectrum LED light source, UV light source

Spectrophotometric Mode: Flat Grating

Senso: Silicon photodiode array (double row 32 groups)

Wavelength Range: 400~700nm

Wavelength Interval: 10nm

Semiband Width: 10nm

Measured Reflectance Range: L:0~120; reflectivity:0~200%

Measuring Aperture: Single Apertures：Φ8mm/Φ10mm

Observer Angle: 2°/10°

Illuminant: D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Accuracy: 0.01

Measuring Time: About 1.5s (Measure SCI & SCE about 3.2s)

Measurement Mode: Single Measurement, Average Measurement(2-99times)

Locating Method: Camera Locating,stabilizer cross position

Dimension: L*W*H=81X71X214mm

Weight: About 460g

Battery: Li-ion battery, 6000 measurements within 8 hours

Illuminant Life Span: 5 years, more than 3 million times measurements

Display: 3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port: USB

Data Storage: Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE)

Language: Simplified Chinese, English, Traditional Chinese

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture

Optional Accessory: USB Micro Printer, Powder Test Box
