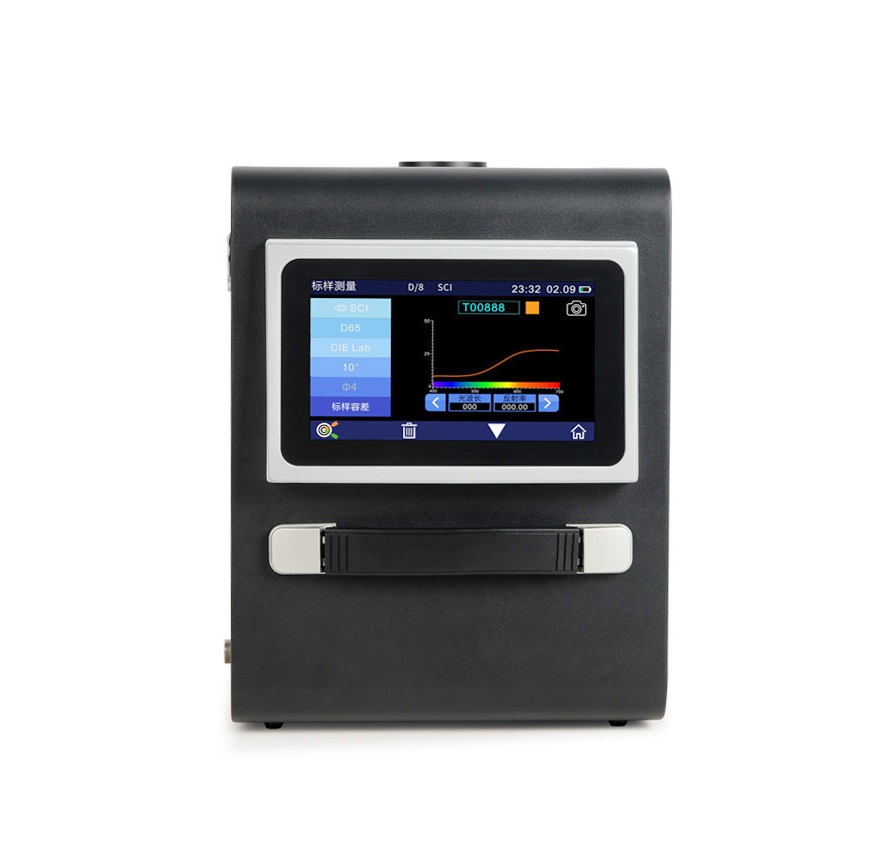

3nh TS8210 Portable Desktop Spectrophotometer (400~700nm)

Optical Geometry: D/8, SCI/SCE; excluded UV measurement

Integrating Sphere Size: Φ40mm

Light Source: Combined full spectrum LED light source

Spectrophotometric Mode: Flat Grating

Sensors: Silicon photodiode array (double row 40 groups)

Wavelength Range: 400~700nm

Wavelength Interval: 10nm

Semiband Width: 10nm

Measured Reflectance Range: 0~200%

Measuring Aperture: Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm

Specular Component: SCI/SCE

Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)

Color Difference Formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00

Observer Angle: 2°/10°

Illuminant: D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Data: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Measuring Time: About 1.5s (Measure SCI & SCE about 3.2s)

Repeatability: Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error: MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Measurement Mode: Single Measurement, Average Measurement(2-99times)

Locating Method: Camera Locating

Dimension: L*W*H=370X240X260mm

Weight: About 7.8kg

Battery: AC 24V, 3A Power adapter power supply

Illuminant Life Span: 5 years, more than 3 million times measurements

Display: 7-inch TFT color LCD, Capacitive Touch Screen

Data Port: USB, trigger switch interface

Data Storage: Standard 1000 Pcs, Sample 20000 Pcs

Language: Simplified Chinese, English, Traditional Chinese

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)

Optional Accessory: Micro Printer, Foot Switch, Rotating Bracket
