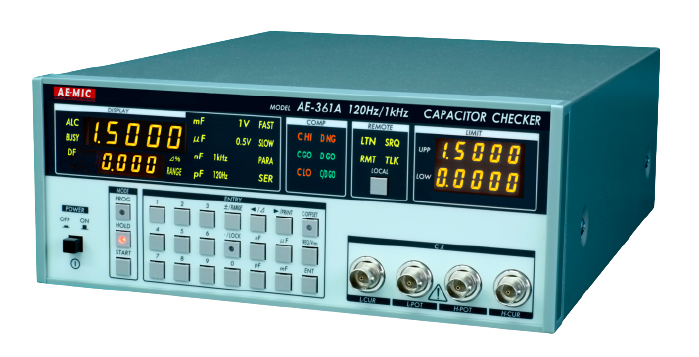

AE-MIC AE-361A 电容器检测机 (0.000pF~1500.0µF,1kHz/120Hz)

Range: Measuring range; Resolution

     15pF: 0.000pF~15.000pF; 0.001pF/DF:0.0001

     150pF: 0.00pF~150.00pF; 0.01pF/DF:0.0001

     1.5nF: 0.0pF~1500.0pF; 0.1pF/DF:0.0001

     15nF: 0.000nF~15.000nF; 0.001nF/DF:0.0001

     150nF: 0.00nF~150.00nF; 0.01nF/DF:0.0001

     1.5µF: 0.0nF~1500.0nF; 0.1nF/DF:0.0001

     15µF: 0.000µF~15.000µF; 0.001µF/DF:0.0001

     150µF: 0.00µF~150.00µF; 0.01µF/DF:0.0001

     1.5mF: 0.0µF~1500.0µF; 0.1µF/DF:0.0001

Measurement Method: 3 or 5 terminal measurement [Available to select the measuring method on each range]

Measuring Frequency: 1kHz/120Hz±0.1%、sine wave

Output Impedance: Approx. 2Ω

Straycapacity revision range: Approx. 20pF

Temperature coefficient: Within ±100ppm/℃[f.s and zero]

Measurement time:

    【Free running】FAST:Aprrox.1~5 time/sec. SLOW:FAST×N (N: The setting number of “average” )

    【Start trigger signal】FAST:1msec.[1kHz], 8.34msec.[120Hz]

Measuring range: Capacitance:0~15000 DF:0.000~0.500

Use environment: Temperature:0℃~+50℃,  Humidity:Less than 85%

Power supply: AC85V~265V, 50~60Hz、Aprrox. 50VA

Outer dimension: 250(W)×99(H)×300(D)mm

Weight: Approx. 3.5kg
