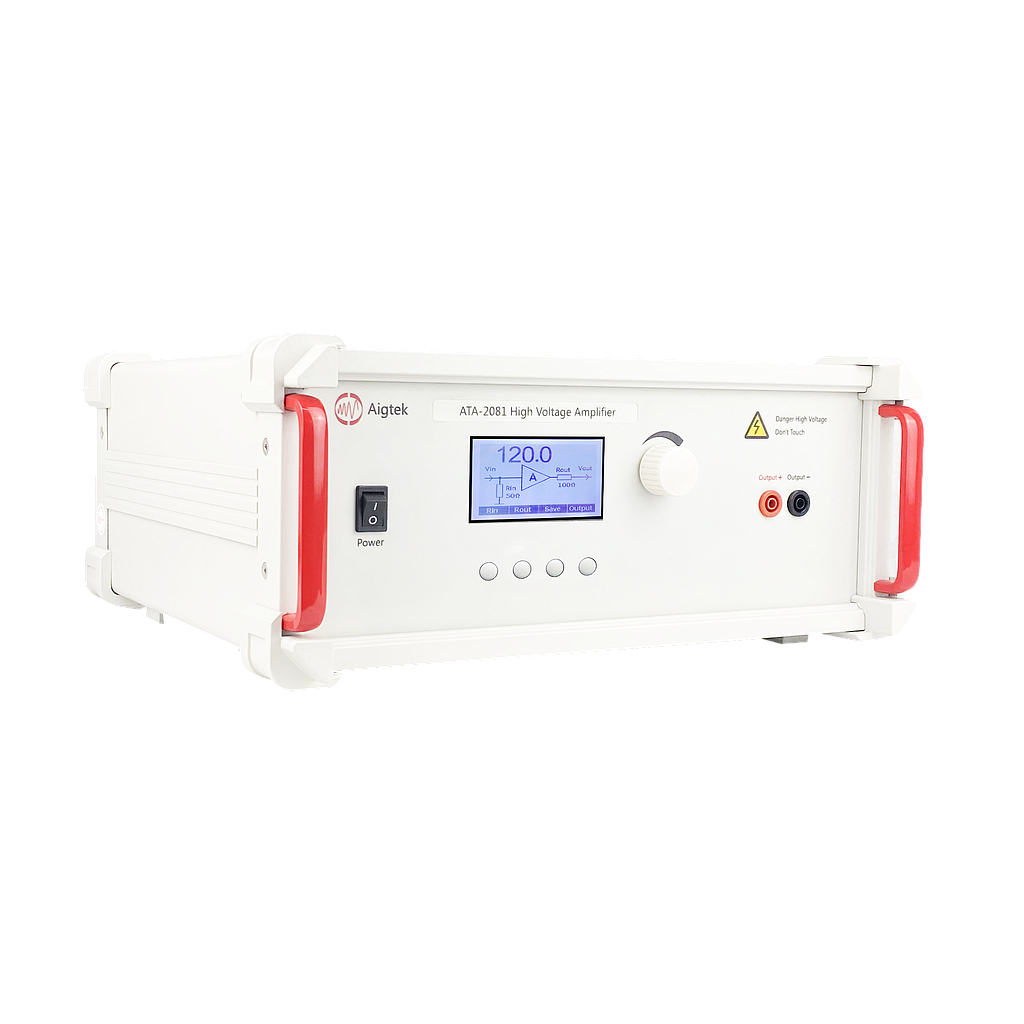

Aigtek ATA-2081 高压功率放大器 ((-3dB) DC ~ 200kHz, 800Vp-p (±400Vp), 40mAp, 16Wp, 1CH)

Number of channels: 1

Output form: Single output

Bandwidth(-3dB): DC~200kHz

Maximum output voltage: 800Vp-p(±400Vp

Maximum output current: 40mAp

Maximum output power: 16Wp

Voltage gain: x0~120(0.1 step)

Load RL upper limit: ≥10kΩ

Output resistance: 100Ω /5kΩ (Customizable)

Slew Rate: 400V/μs

Input resistance: 50Ω / 5kΩ

Input amplitude: 0~10Vp-pMAX

Output voltage error: ≤±3% FS@1kHz

Voltage monitoring: 100:1(±5%)

Total harmonic distortion (THD): ≤0.1%@1kHz,100Vp-p

Output voltage zero-point drift: ≤0.3V

Signal-noise ratio(SNR): ≥80dB

Output Connector: 4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%,50Hz

Fuse: 2A/250V

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: 80%RH,no condensation

Size (W * H * D): 365*163*365mm
