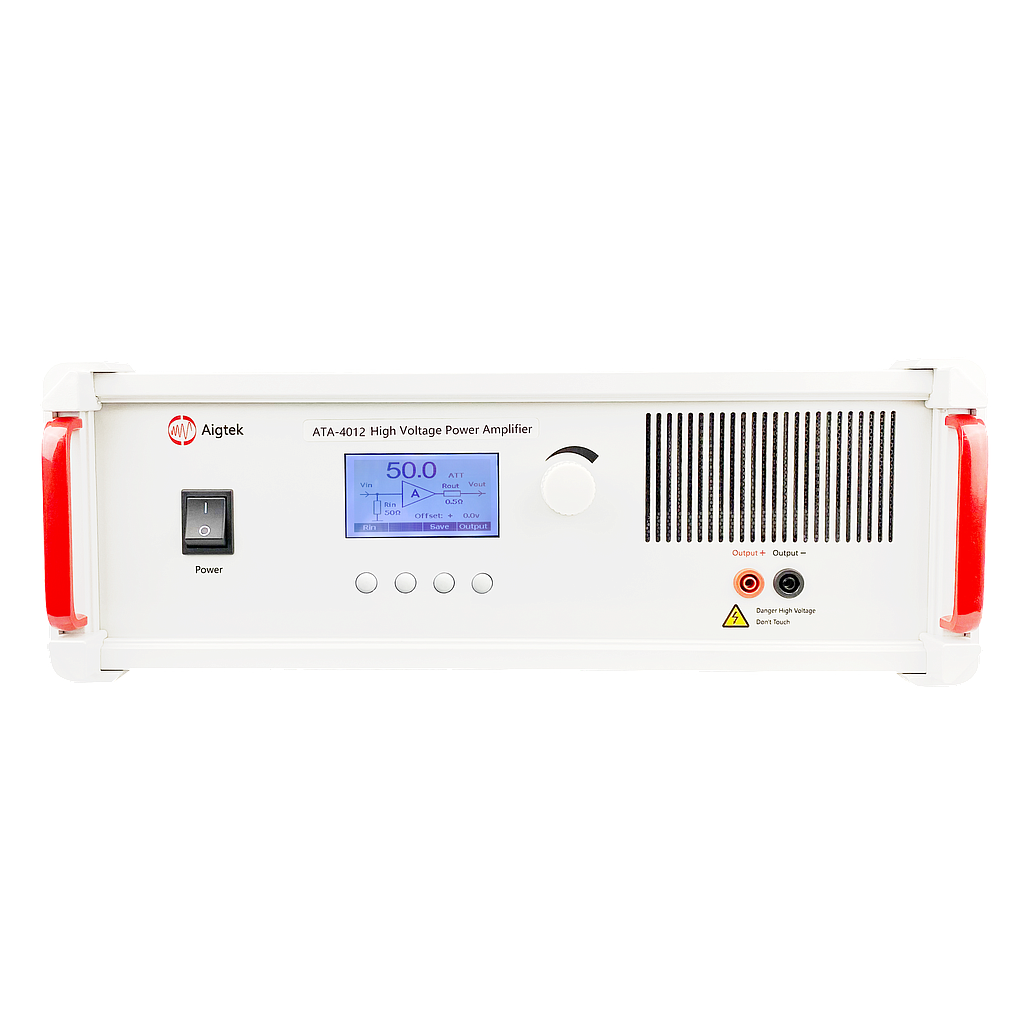

Aigtek ATA-4012 高压功率放大器 ((-3db) DC ~ 1MHz, 160Vp-p (±80Vp), 2 Arms, 225.6Wp, 1CH)

Output form: Single output

Bandwidth（-3dB）:  DC~1MHz

Maximum output voltage:  160Vp-p(±80Vp)

Maximum output current:  1Ap(DC-50Hz), 2.82Ap，2Arms （50Hz~1MHz）

Maximum output power:  225.6Wp

Fuse:  8A/250V

Voltage gain:  x0~50(0.1step)

Load RL upper limit:  ≥28.3Ω (above 50Hz)

Output impedance:  0.5Ω＋1.2uH

Slew Rate:  400V/μs

DC bias:  ±75V(0.1Vstep)

Input impedance:  50Ω / 5kΩ

Input amplitude:  0~10Vp-pMAX

Output voltage error:  ≤±3%FS@1kHz

Voltage monitoring:  100:1（±5%）

Total harmonic distortion （THD）:  ≤0.1%@1kHZ，100Vp-p

Output voltage zero-point drift:  ≤0.1V

Output Connector:  4mm Banana socket

Protection:  Overcurrent protection

Signal Ground:  It is connected with the grounding of the shell and the power line

Supply voltage:  AC220V±10%，50Hz

Operating temperature:  0℃~45℃

Storage temperature:  -20℃~50℃

Humidity:  ≤80% RH，no condensation

Size(W * H * D):  440*163*470mm
