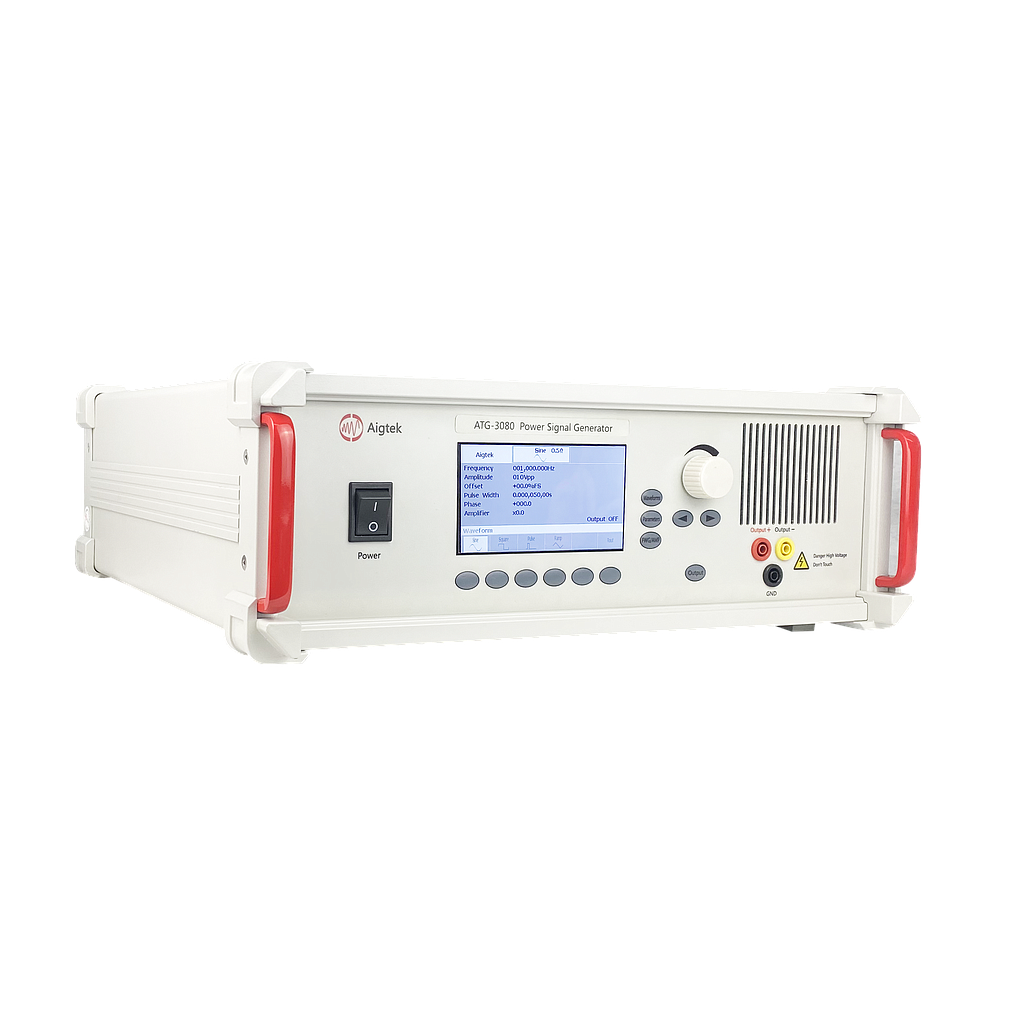

Aigtek ATG-3080 信号发生器 ((-3dB) DC to 100kHz, 180Vp-p (±90Vp), 8Ap, 720Wp, 1CH)

Bandwidth (-3dB): DC~100kHz

Output form: differential output

Maximum output voltage: 180Vp-p(±90V)

Maximum output current: 8A

Maximum output power: 720W

Voltage gain: 0~60(0.1step)

Input resistance (Rin): 50Ω / 5kΩ

Input waveform amplitude: 10Vp-pMAX

Output resistance (Rout): 0.5Ω / 50Ω customizable

Slew rate: 50V/μs

Load limit (RL): ≥11.25Ω
