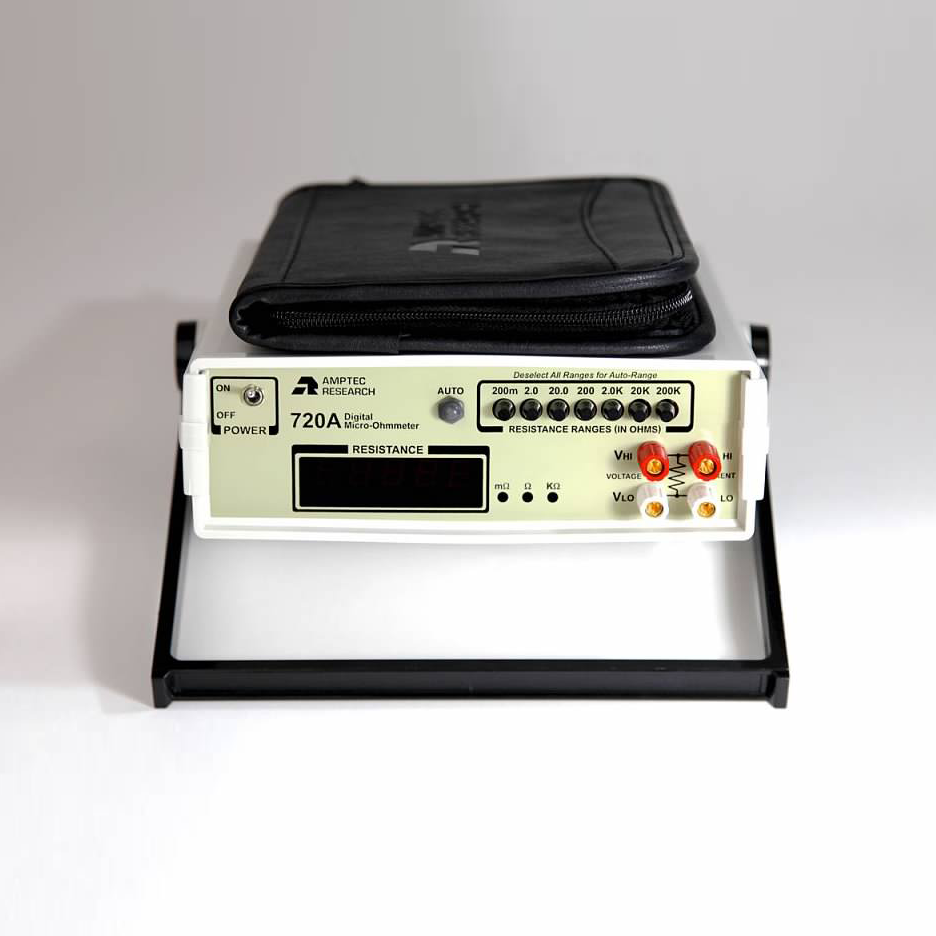

Amptec 720A 7量程数字微欧姆计 (200mΩ~200KΩ)

Range: 200 mΩ

Nominal Current: 100 mA

Resolution: 10 uΩ

Accuracy: ± .02% of reading & ± .05% of range ±


Range: 2 Ω

Nominal Current: 100 mA

Resolution: 100 uΩ

Accuracy: ± .02% of reading & ± .03% of range


Range: 20 Ω

Nominal Current: 10 mA

Resolution: 1 mΩ

Accuracy: ± .02% of reading & ± .03% of range


Range: 200 Ω

Nominal Current: 1 mA

Resolution: 10 mΩ

Accuracy: ± .02% of reading & ± .03% of range


Range: 2K Ω

Nominal Current: 100 uA

Resolution: 100 mΩ

Accuracy: ± .02% of reading & ± .03% of range


Range: 20K Ω

Nominal Current: 10 uA

Resolution: 1 Ω

Accuracy: ± .02% of reading & ± .03% of range


Range: 200K Ω

Nominal Current: 1 uA

Resolution: 10 Ω

Accuracy: ± .02% of reading & ± .03% of range


Display: 4 1/2 digit LED

Terminal: 4-wire Kelvin

Overload: Flashes

Update: 3/sec.

Temperature Coefficient: ± .002% per 1° C

Operating Temperature Range: 0° to 50° C

Dimensions: 9″ x 10″ x 3″

Weight: 4 lbs.

Power: 90-240 VAC 50-60 Hz

Max Input Voltage: 264 VDC

Open Circuit:~15 VDC

Max Test Current: 100 mA
