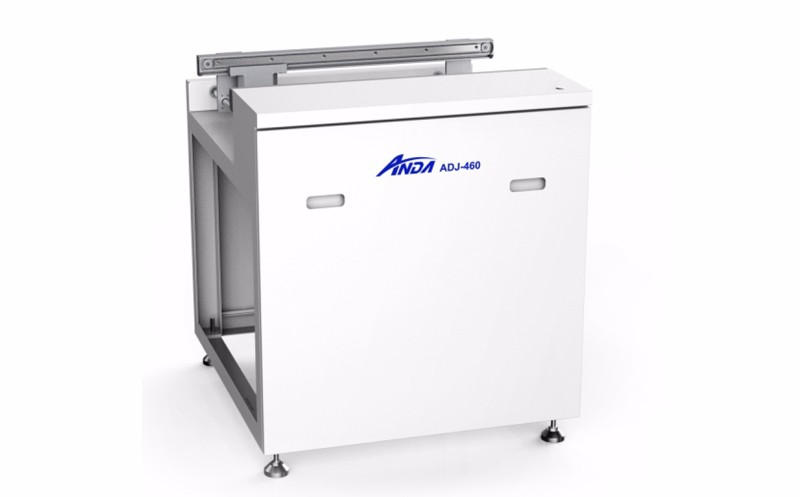

The fields of application involve SMT coating production line, dispensing production line and non-standard production line.
Integrated frame soldered by sheet metal.
The board width of passing through the station is adjusted arbitrarily from 50 to 460mm.
Equipment length specification 0.5m,0.8m optional.
Technical Parameters ：
Size: L=800 W=840 H=1110mm
Control system: button
Working height: 900±20mm
Conveyor length: 800mm
Conveyor type: edge conveyor with extended pin chain
PCB size: 50～460mm
Conveyor speed: 0.35-6m/min
Conveyor direction: from left to right
Conveyor motor: JSCC governor motor +speed controller
Power supply: single phase 220V 50/60HZ
Total power: 100W
