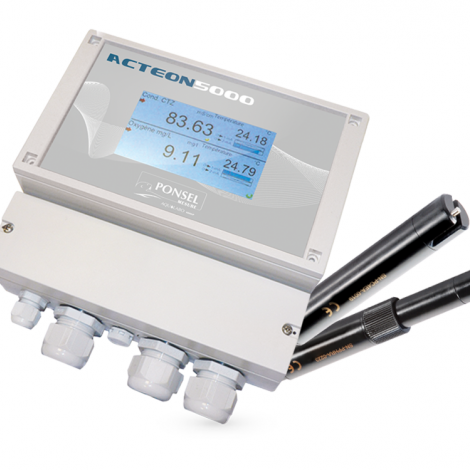

Aqualabo NC-FIX-C-00107 Transmitter pH and Conductivity sensors 7m ACTEON 5000 (0~200 mS/cm, 0~14 pH)

Range

Conductivity: 0-200,0 µS/cm, 0 –2000 µS/cm, 0,00 –20,00 mS/cm, 0,0 –200,0 mS/cm

PH: 0 – 14 pH

Transmitter ACTEON 5000

Software and features

Digital sensor: 2 inputs digital sensor RS485

2 analog input: In mode 0/4-20 mA or 0-10 V

2 relay input: Function of transfer on exit(release) TOR

                      Information of external cleaning system: swing in maintenance mode

2 analog outputs: Choice of 2 parameters programmable according to the connected sensor

                              Programming PID

2 digital outputs /relay: NO/NF customizable

                                     Instruction point: setting of the measuring range

                                     (Hysteresys / activation way) and time of activation,

                                     Command for external cleaning system

                                     Output alarm for defect material sensor

Digital output: Modbus RTU

                       Ethernet TCP IP

Data recording: Internal flash memory

                          Frequency recording: 1-120 mn

                          Recording journal of events, measure sensors.

Atmospheric pressure sensor: To compensate oxygen pression

Characteristics

Display: Backlit graphic LCD touch Screen – Size95x54 mm

Analog outputs: 0/4.00 – 20.00 mA with galvanic isolation

                           Charge max 250 W

Relay outputs: 6 A /250 V

Operating conditions: Temperature : -15°C to + 50 °C

                                   Temperature of storage/transport : -15°C to + 50°C

USB port: Unloading of the recorded data

Power/ Electrical protections: 100-240 V AC/DC 50-60 Hz

                                                 - Option 9-28 V DC/DC

                                                 - Electrical protection: consistent EN61010-1 :2010

Housing

Dimensions (LxHxP): 213 x 185 x 84 mm

Material: Grey ABS

Protection rating: IP 65

Front: Antireflective polyester

Containing :

- 1 ACTEON 5000 transmitter digital bi-sensors,

- 1 digital PHEHT sensor with 7m cable,

- 1 digital C4E sensor with 7 m cable,

- 1 buffer solution PH4,

- 1 buffer solution PH7,

- 1 buffer solution 84 µS/cm,

- 1 buffer solution 1413 µS/cm,

- 1 Operating instructions on CD.
