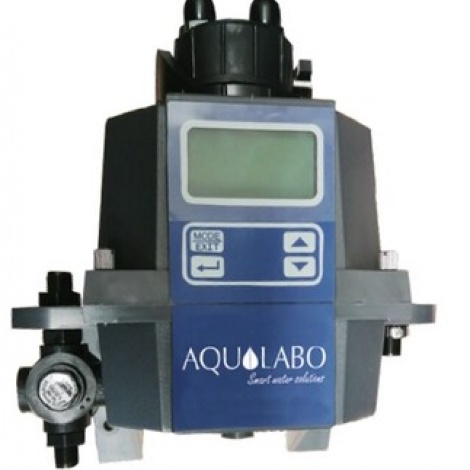

Aqualabo S200 低量程浊度计 (0-10NTU)

Technical characteristics for the measure

Measured parameter

Measuring principle Turbidity : IR Nephelometry

                                                 ISO 7027

Measuring range: 0-10NTU

Resolution: Between 0-10 NTU : 0.0001 NTU

                   Between 10 and 100 NTU : selectable

Accuracy: Between 0-40 NTU : 2% of reading or +/- 0.02 (whichever is greater)

                                                  5% of reading above 40 NTU

Response time: Adjustable (5 to 500 seconds)

Sample Temperature Range: 1-50 °C

Technical characteristics S200 TUr

Constructional design wall-mounted casing S200 TUr

Mains power: 100-240 VAC, 47-63 Hz, 80 VA

Display: LCD display, 4x20 characters, alphanumeric, backlight

              Easy operation by means of 4 keys

Weight: 2.5 Kg

Protection class: IP 66/NEMA 4X

Input Pressure: 1-200 psi (built regulator set at 15 psi)

Flow Rate: 100 ml/min to 1 L/min

Operating temperature: 1 to + 50 °C

Environmental conditions: Not recommended for outdoor use

                                          Altitude up to 2000 meters

                                          Up to 95 % RH (non-condensing)

Regulatory Compliance And Certifications ISO: 027 – IR Nephelometry

                                                                           CE approved, ETL listed to UL 61010B-1 & ETL Certified to CSA 22.2

                                                                           No. 1010-1-92
