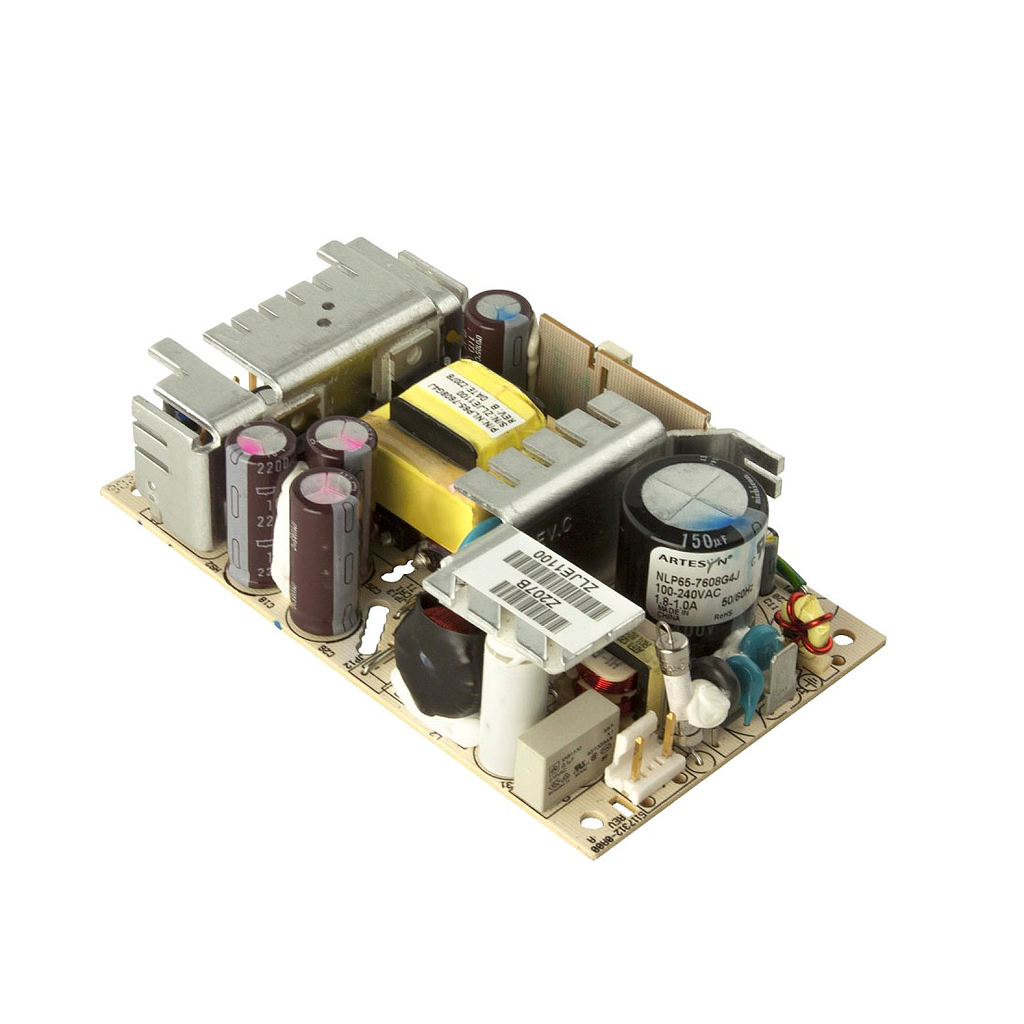

Artesyn NLP65-9915J 低功率AC-DC电源 (15V; 5.7A; 65W)

Input

Input voltage range: Universal input (see Note 2) 85 - 264 Vac

Input frequency range: 47 - 63 Hz

Input current (cold start)

120 Vac: 17 A max

230 Vac: 32 A max

Input current:

120 Vac: 1.05 A rms

230 Vac: 0.51 A rms

Output

Output power: Natural convection: 65 W max

Rise time: At turn-on: 1.0 s max

Weight: 283 g (10 oz)

Functions: Safety ground leakage current; Overvoltage protection; Short circuit protection

Environmental Specifications

Thermal performance:

Operating (See derating curve): 0 °C to +70 °C

Non-operating: -40 °C to +85 °C

0 °C to 50 °C, ambient, convection cooled: 65 W

50 °C - 70 °C ambient, convection cooled: Derate to 50% load

Peak (0 °C to 50 °C, 60 s): See table

Relative humidity: Non-condensing: 5 to 95% RH

Ordering Information

Output Voltage: +15 V

Output Current

Max: 4.4 A

Peak: 5.7 A

Fan: 5.3 A

Ripple: 150 mV

Total Regulation: ± 2.0%
