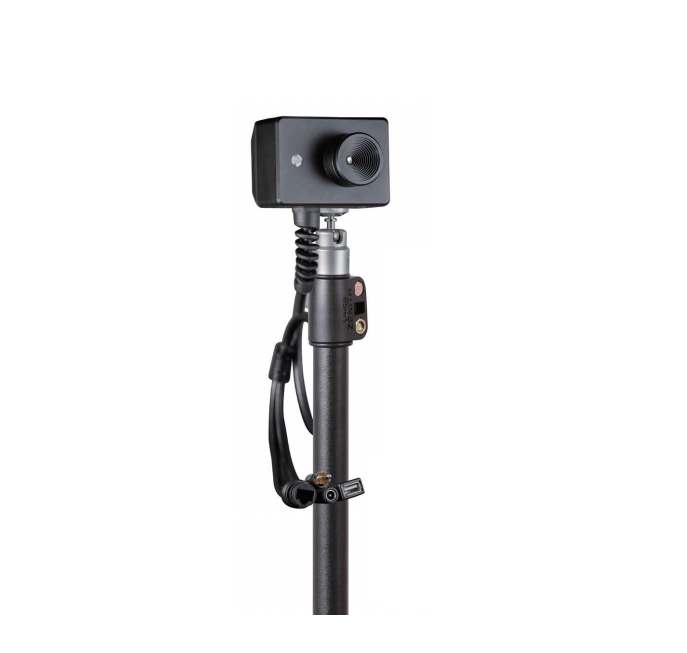

CEM AI-201 智能防疫红外热像仪 (160x120)

Imaging and optical data

IR Resolution: 160x120

Focal Plane Array: Uncooled microbolometer/8~14um

Field of View: 29.8x22.6

Focal length: 7.5mm

Spatial resolution: 3.33mrad

NETD (@25°C,F#1.0): <0.8°C 80mK

Image Frequency/Focus: 50Hz/Manual

Measurement

Object temperature range:

32°C~42°C(–89.6°F~+107.6°F)

–20~150°C (–4~302°F)

0~650°C (32~1202°F)

Face tracking: Intelligent face tracking,detect 10 faces at the same time

Built-in visible digital camera: 2M Pixels

Accuracy: ±0.5°C (32~42°C, Screening mode) ±2°C, Normal temperature measurement range

Image adjustment

Color palettes: Grey/Grey Inverted/IRON/Rainbow

Imageing Algorithm: Intelligent image enhancement

Interfaces

Video output/Digital output: RJ45 Enthenet/ Standard PAL /USB UVC

Communication interface: HTTP/RTSP

Power/ Power consumption: 5 VDC/ <1.8W @25°C

Size (HxWxD):85mm x 75mm x 60mm

Weight:193g

Details

Datasheet
