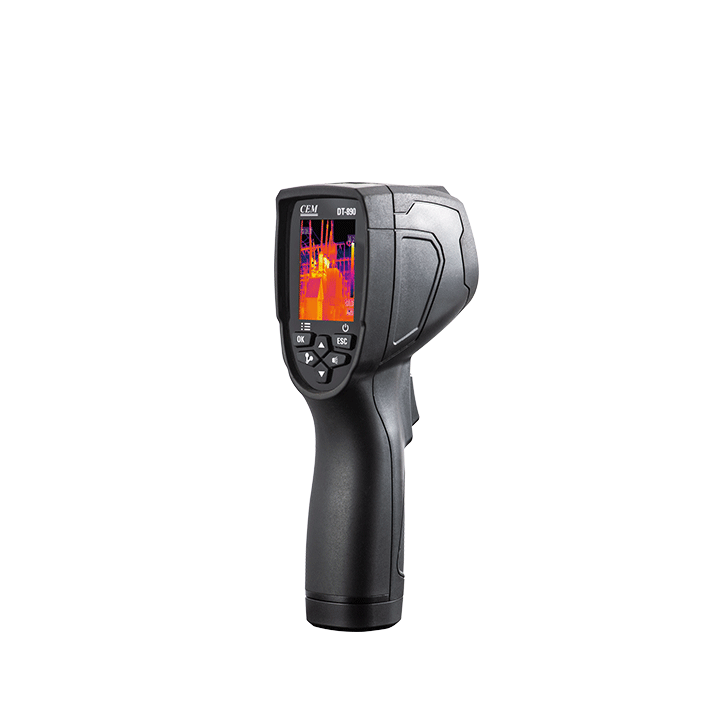

CEM DT-890 热像仪 (-20°C~450°C, 4.53mrad, 120x90pixels)
制造商: CEM Model: DT-890 来源: China 保障: 12 Month - 报价要求
- 联系
Imaging and optical data
Field of view (FOV): 21x21
Spatial resolution (IFOV): 4.53mrad
NETD: <0.1 o C@30 o C(80 o F)/100mK
Image Frequency: 50Hz
Focus Mode: Focus free
Focal Plane Array(FPA)/Spectral Range: Uncooled microbolometer/8-14um
IR Resolution: 120x90
Image presentation
Display: 2" TFT LCD, 240x320 pixels
Color palettes: IRON/Rainbow/Grey/Grey Inverted
Measurement
Object temperature range: -20°C to 450°C (-4°F to 842°F)
Accuracy: ±2°C(+/- 3.6°F) or ±2% of reading
Measurement analysis
Spotmeter: Center Spot
Automatic Hot/Cold Detection: Auto hot or cold markers
Emissivity Correction: 8 pre-define level and Variable from 0.01 to 1.0
Storage of Images
Storage Media: 8 Gbytes Micro SD card
Image Storage format: Bitmap(BMP),including measurement data.
Data communication interfaces
Interfaces: USB-micro, Data transform between camera and PC
Bluetooth: Yes
Power system
Battery: Li-ion battery, 8 hours operting time
Input Voltage: DC 5V
Charging System: In camera(AC adapter)
Power Management: Automatic shutdown
Environmental Data
Operating Temperature Range: -20 ℃ to 50 ℃ (-4 ℉ to 122℉)
Storage Temperature Range: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Humidity(operating and storage): 10% to 90%
Drop test: 2m
Accessories:
Lens, Battery, software CD-ROM, Wrist strap, micro SD card, Adaptor, USB cable, Gift box.
