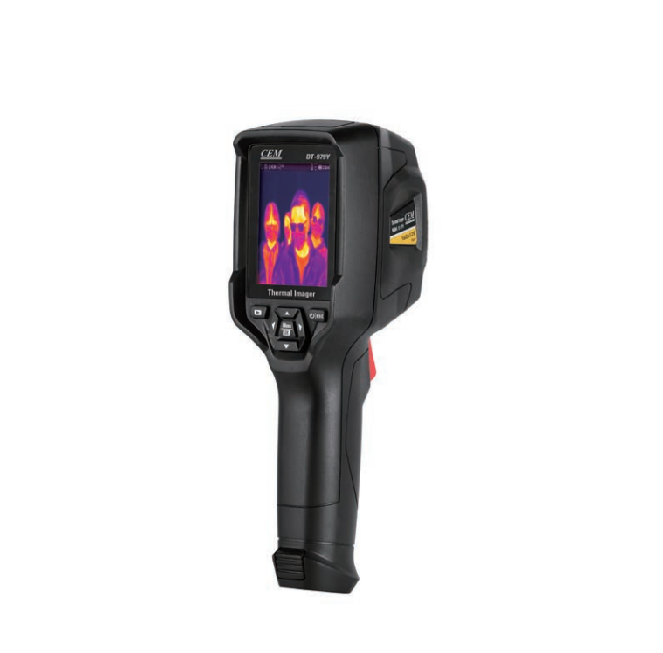

CEM DT-979Y AI智能热像仪 (-20°C ~ 400°C,160x120)

Imaging and Optical Data

Field of View: 50x38°

Spatial Resolution: 5.4mrad

NETD: <0.1°C@30°C(80°F)/100mK

Image Frequency: 25Hz

Focus Mode: Focus free

Focal Plane Array(FPA) Spectral Range: Uncooled microbolometer/8-14um

IR Resolution: 160x120

Image Presentation

Display: 2.8" TFT LCD, 240x320 pixels

Color Palettes: IRON, RainBow, Grey, GreyInverted, Brown, Blue-red, hot-cold, Feather

Measurement

Object Temperature Range: Screenning mode:32°C~42°C(–89.6°F~+107.6°F)-20°C~400°C (-4°F~752°F)

Accuracy: Screenning mode: ±0.5°C (±0.9°F) in 32°C~42°C ±2°C(±3.6°F)/ ±2% of reading

Screening temperature range:  32°C~42°C

High temperature alarm setting: Default 37.3°C

Full-field high-temperature tracking: Red crosshair mark

Face tracking: Intelligent face tracking, detect 10 faces at the same time

Measurement Analysis

Spotmeter: Center Spot

Automatic Hot/Cold Detection: Auto hot or cold markers

Emissivity Correction: 8 pre-define level and Variable from 0.01 to 1.0

Storage of Images: 8G SD card

Image Storage format: Bitmap(BMP),including measurement data.

Data Communication Interfaces: USB-C interface

Power System

Battery: Li-ion battery, 4 hours operating time

Input Voltage: DC 5V

Charging System: In camera(AC adapter)

Power Management: Automatic shutdown

Environmental Data

Operting Temperature Range: -20°C~50°C (-4°F~122°F)

Storage Temperature Range: -40°C~70°C (-40°F~158°F)

Humidity(operating and storage): 10%~90%

Drop test: 2m

Digitl camera: 2M pixel

Size (HxWxD):224 x 72 x 90mm

Weight: 480g

Accessories:

Earphone (Optional), Battery, software CD-ROM, Wrist strap, micro SD card, Adaptor, USB cable, Gift box.
