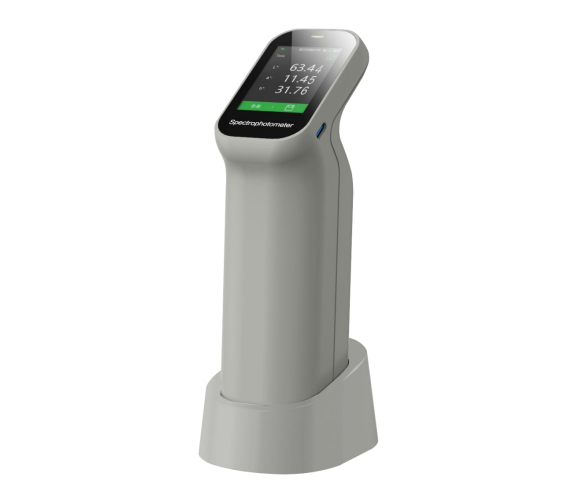

CHN SPEC DS-220 便携式色度计 (D/8,SCI; ΔE*ab≤ 0.03; 0.01; Φ11mm,Φ6mm, Φ3mm; LED+UV)

Measuring structure*:  D/8,SCI

Measurement repeatability**: ΔE*ab≤ 0.03

Display accuracy:  0.01

Measuring aperture: Φ11mm,Φ6mm, Φ3mm

Color Spaces and Indices: Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00, ASTM E313-73), Blackness(My,dM),Color Fastness

Source condition: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83, TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Light source: LED+UV

Measurement observation method: Camera

Calibration: Auto calibration

Software support: Andriod,iOS,Windows, Wechat app

Guaranteed accuracy: Guaranteed first class measurement

Observer: 2°,10°

Integrating sphere diameter: 40mm

Standards: CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Ways of spectral: Nano-integrated spectral devices

Sensor: Silicon photodiode array Dual 16-group

Wavelength interval: 10nm

Wavelength range: 400-700nm

Reflectance determination range: 0-200%

Reflectance resolution: 0.01%

Measurement method: Single measurement, average measurement (2 to 99 measurements)

Measurement time: Approx. 1 second

Interface: USB, Bluetooth

Screen Screen: Full colour screen, 2.4

Battery capacity: 8000 continuous measurements on a single charge, 3.7V/3000mAh

Life of light: 10 years and 1 million cycles

Language: Simplified Chinese, English

Storage: Instrument :10,000 data ; APP: mass storage

* Diffuse illumination / 8° directional reception with specular reflected light included / specular reflected light removed

**White plate calibration with 30 standard deviations measured at 5 second intervals after white plate calibration
