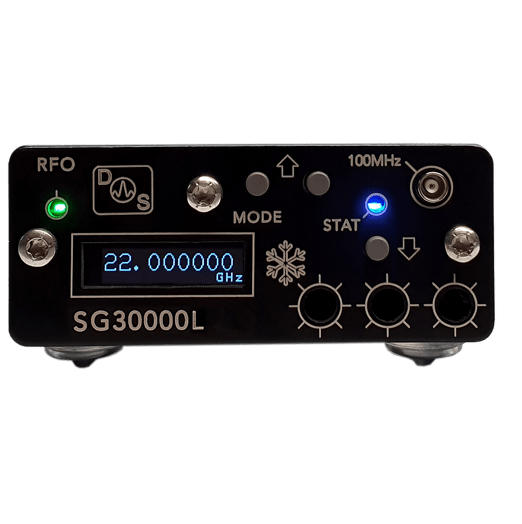

DS INSTRUMENTS SG30000L 标准RF信号发生器 (0.05 – 30GHz)

Output frequency range covering 0.05 – 30GHz

Low band SMA port: LF-13GHz

High band 2.92mm port: 13-30GHz

Power control (0.1 – 13Ghz): -10dBm to +10dBm (vernier only – no steps)

Power control (13 – 30GHz calibrated): -20dBm to +10dBm (0.5dB steps & vernier)

Max output power in un-calibrated mode: +13dBm typical

Excellent phase noise: -90dBc at 22GHz at 10KHz offset

Harmonic levels: < -12dBc typical

Extremely small frequency step size (2Hz)

External 10MHz reference input (MCX jack)
