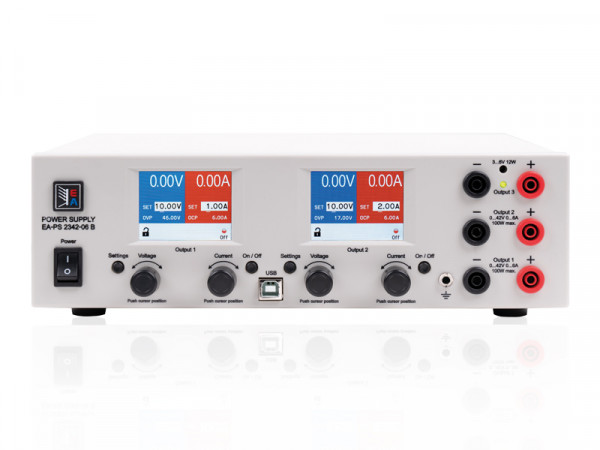

EA Elektro-Automatik EA-PS 2342-06 B 台式直流电源 (42V; 6A; 100W)

Input AC : 90...264 V, 45...66 Hz, PF = 0.99

Output voltage : Output 1+2: 0...42 V Output 3: 3...6 V

- Load regulation 0-100% load : <0.15%

- Line regulation ±10% ΔUAC : <0.02%

- Ripple output 1+2 (1 : <100 mVPP / <4 mVRMS

- Regulation 10-90% load : <2 ms

- Overvoltage protection : 0...46.2 V

- Accuracy : <0.2%

Output current DC : Output 1+2: 0...6 A Output 3: max. 4 A

- Load regulation 0-100% ΔUDC : <0.15%

- Ripple output 1+2 (1 : <10 mAPP / <4 mARMS

- Accuracy : <0.3%

Efficiency : 0.85

Output power : 2x 100 W + 1x 12 W

Cooling : Fanless, natural convection

Operation temperature : 0...50 °C

Storage temperature : -20...70 °C

Dimensions (WxHxD) : Enclosure: 282x82x243 mm Overall: 282x90x260 mm

Weight : 3.8 kg

(1) RMS value: measures at LF with BWL 300 kHz, PP value: measured at HF with BWL 20MHz
