ELCOMETER 506 数显粘附力测定仪套餐 (0.3~4 MPa)

Accuracy: ±1% of full scale

Pressure Rating: 26 MPa (3800 psi)

Operating Range: 0.3 to 4 MPa (50 to 580 psi)

Scale Resolution: 0.01 MPa (1 psi)

Instrument Length: 290mm (11.5”)

Actuator Height (skirt fitted): 110mm (4.3”)

Instrument Weight: 2.0kg (4.4lb)

Kit Weight: 5.2kg (11.5lb)

Battery Type: 2 x AA batteries (digital gauge only) Battery Life: 2000 hours

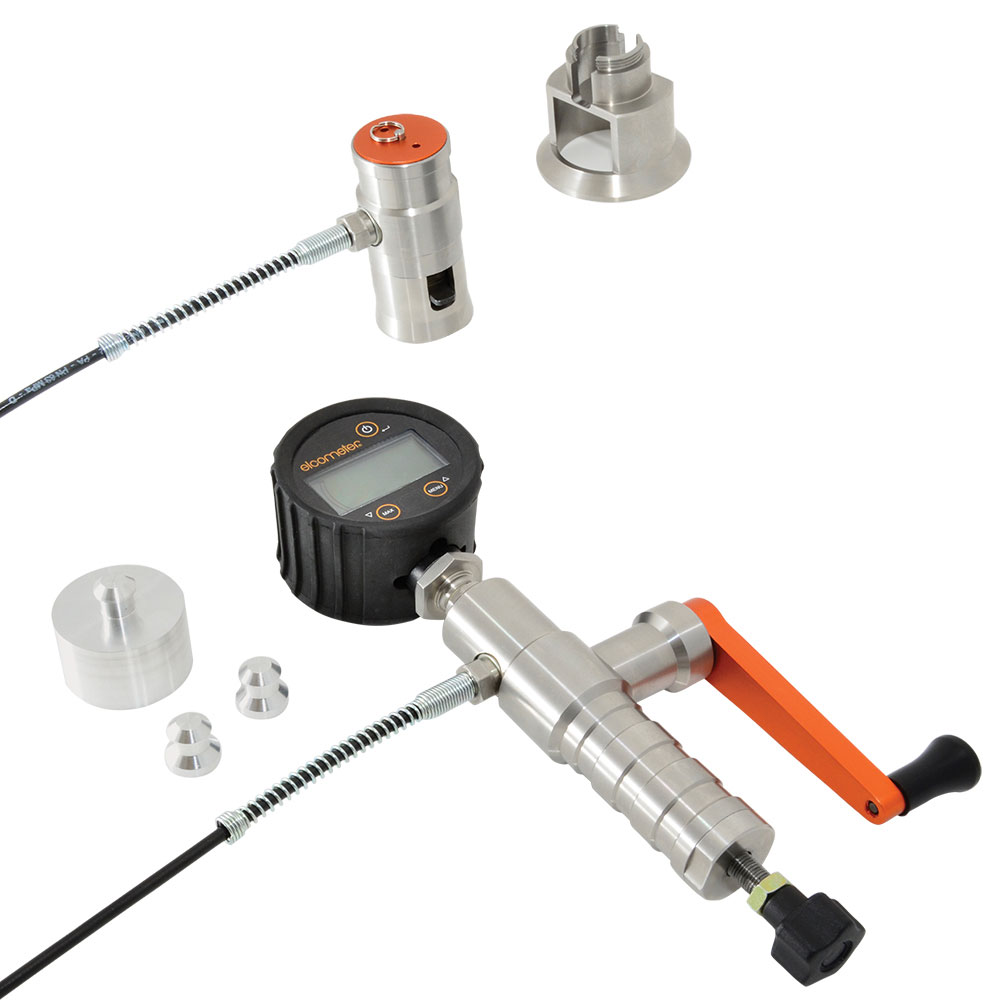

Packing List: Elcometer 506 Adhesion Tester with 50mm dollies (x6), standard skirt for 50mm dollies, 50mm dolly cutter arbor, 50mm dolly cutter, Araldite standard two part epoxy adhesive (2 x 15ml tubes), abrasive pad, carry case, 2 x LR6 (AA) batteries (Digital Gauge only), test certificate and operating instructions

c/w CALIBRATION CERTIFICATE
