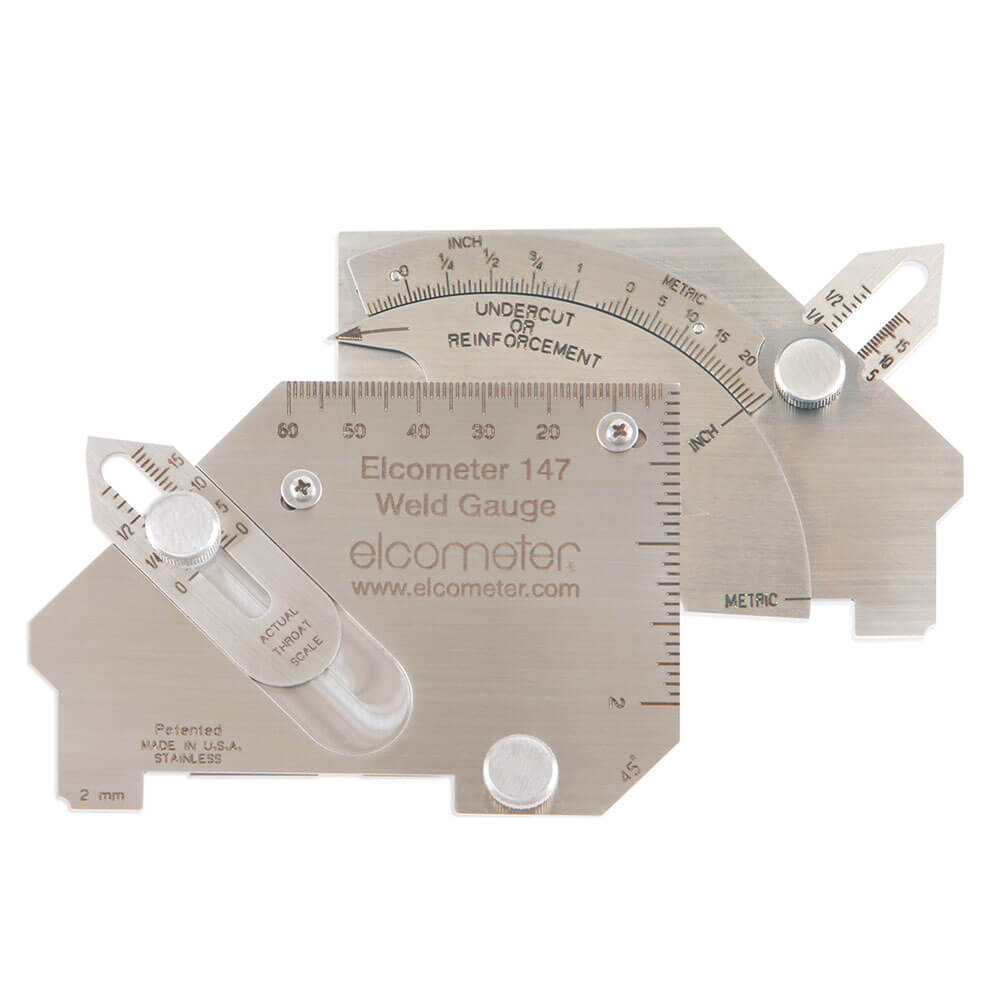

ELCOMETER 147 Weld Gauge (0~60°)

Angle of Preparation Scale: 0 - 60° in 5° divisions

Misalignment Scale:

- 0 - 25mm in 1mm divisions

- 0 - 1” in 1/16” divisions

Fillet Leg & Excess Weld Scale:

- 0 - 25mm in 1mm divisions

- 0 - 1” in 1/16” divisions

Fillet Throat Scale:

- 0 - 20mm in 1mm divisions

- 0 - 3/4” in 1/16” divisions

Undercut Scale:

- 0 - 4mm in 1mm divisions

- 0 - 1/4” in 1/16” divisions

Dimensions: 100 x 68mm (3.9 x 2.7”)

Weight: 154g (5.4oz)

Packing List: Elcometer 147 Weld Gauge and instruction card
