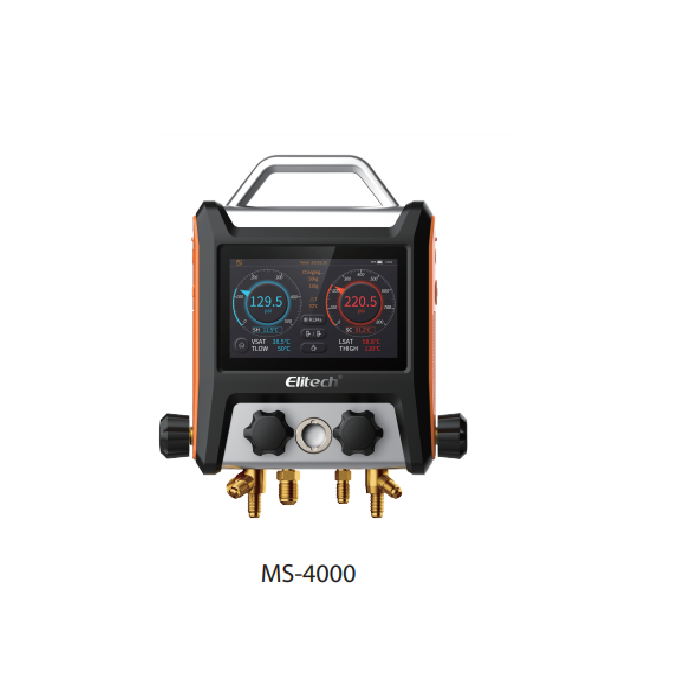

Elitech MS-4000 智能2阀数字阀组 (-14.5~800psi/-40℃-150℃/0-19000 micron)

Pressure

Measuring Range: -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa

Accuracy:  0.5%FS

Resolution: 0.1psi/0.1kg/cm2/0.1bar/0.01MPa

Pressure unit: psi, inHg, kg/cm2, cmHg, bar, kPa, MPa

Data Sampling Frequency: 0.5S

Overload: 1000psi/70kg/cm2/69bar/6.8MPa



Temperature Clamp

Temperature Range: -40℉-300℉/ -40℃-150℃

Accuracy: ±0.1℃/±0.18℉

Resolution: 0.1℉/℃

Temperature Unit: ℉, ℃



Vacuum

Range: 0-19000 microns

Accuracy: 0-10000microns, ±10% of Reading / ±10 microns; 10000-19000microns, ±20% of Reading

Vacuum Unit: inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa

Resolution: 0-400, 1 microns; 400-3000, 10 microns; 3000-10000, 100 microns; 10000-19000, 250 microns;

Interface: 1/4SAE and 1/4SAET



Interface: 1/4 SAE*3 & 3/8 SAE*1

Sensor interface: PS/2*2

USB Interface: Type-C*1 (for data export and charging)

Dimensions: 254*215*46mm

Weight: 3.5lb/1.5kg

Working temperature: -20~60℃/-4~140℉

Storage temperature: -40~80℃/-40~176℉
