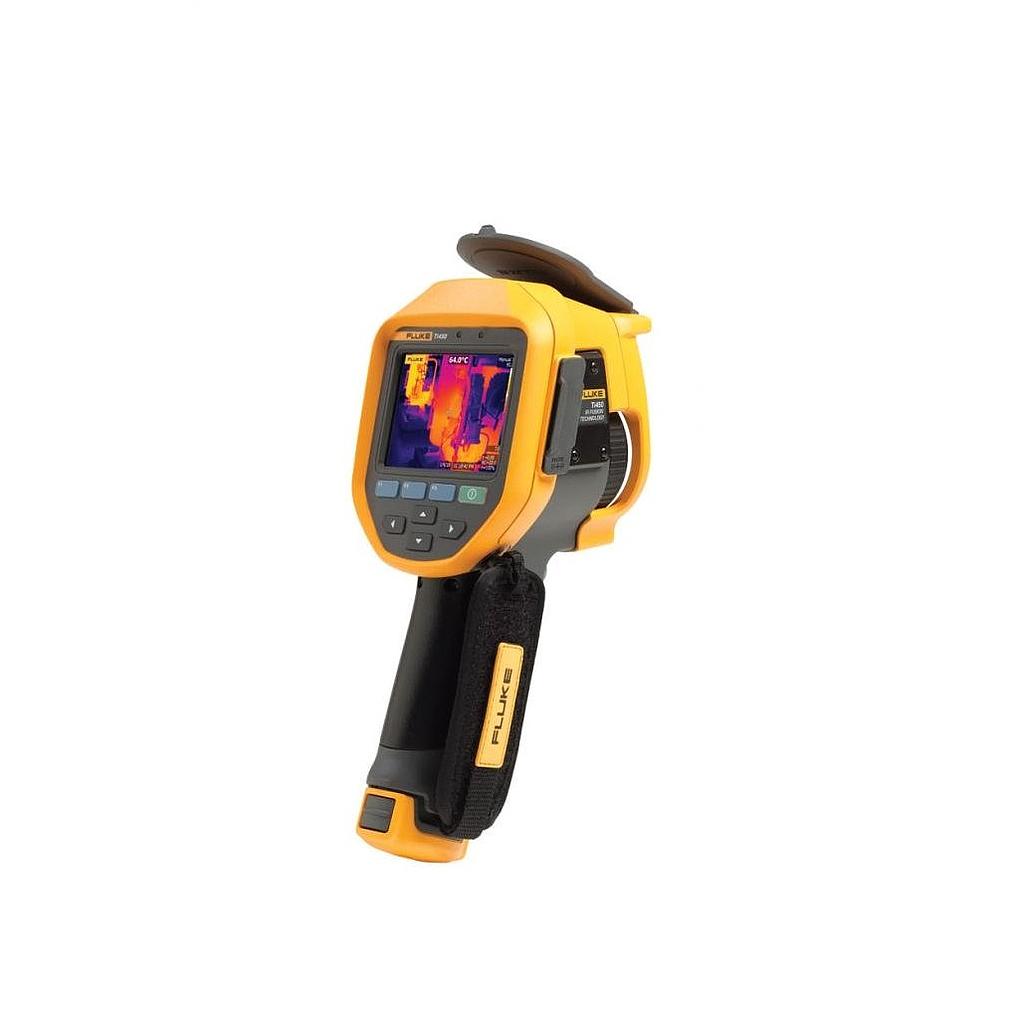

FLUKE Ti450 红外测温仪 (-20~1200°C, 640 x 480px)

Key Features

IFOV with standard lens (spatial resolution): 1.31 mRad, D:S 753:1

Detector resolution: 320 x 240 (76,800 pixels) — or 640 x 480 with SuperResolution

SuperResolution: Yes, on camera and in software. Captures and combines 4x the data to create a 640 x 480 image

MultiSharp™ Focus: Yes, focused near and far, throughout the field of view

LaserSharp® Auto Focus: Yes, for consistently in-focus images. Every. Single. Time.

Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen

Advanced manual focus: Yes

Ruggedized touchscreen display: 3.5 inch (landscape) 640 x 480 LCD

Rugged, ergonomic design for one-handed use: Yes

Digital zoom: 2x and 4x

Temperature measurement

Temperature measurement range (not calibrated below -10 °C): -20 °C to +1200 °C (-4 °F to +2192 °F)

Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater)

Thermal sensitivity (NETD)*: ≤0.03 °C at 30 °C target temp (30 mK)

On-screen emissivity correction: Yes (both value and table)

On-screen reflected background temperature compensation: Yes

On-screen transmission correction: Yes

Best possible

Wireless connectivity

To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)

Fluke Connect® app compatible: Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect® app for saving and sharing

Fluke Connect® Assets optional software: Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.

Fluke Connect® Instant Upload: Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect® system for viewing on your smartphone or PC

Fluke Connect® tool compatible: Yes, connects wirelessly to select Fluke Connect® enabled tools and displays measurements on camera screen. Five simultaneous connections supported.

IR-Fusion® technology

Adds the context of the visible details to your infrared image

AutoBlend™ mode: Min, Mid, Max IR plus full visible on camera; continously variable in software

Picture-In-Picture (PIP): Yes

Built-in digital camera (visible light): 5 MP

Lenses

Standard lens: IFOV (spatial resolution): 1.31 mRad, D:S 753:1

                        Field of view: 24 °H x 17 °V

                        Minimum focus distance: 15 cm (approx. 6 in)

                        IR-Fusion® technology: Picture-in-picture and full screen

Optional 2x telephoto smart lens: IFOV: 0.65 mRad, D:S 1529:1

                                                      Field of view: 12 °H x 9 °V

                                                      Minimum focus distance: 45 cm (approx. 18 in)

                                                      IR-Fusion® technology: Picture-in-picture and full screen

Optional 4x telephoto smart lens: IFOV: 0.33 mRad, D:S 2941:1

                                                      Field of view: 6.0 °H x 4.5 °V

                                                      Minimum focus distance: 1.5 m (approx. 5 ft)

                                                      IR-Fusion® technology: Picture-in-picture and full screen

Optional wide-angle smart lens:   IFOV: 2.62 mRad, D:S 377:1

                                                     Field of view: 46 °H x 34 °V

                                                     Minimum focus distance: 15 cm (approx. 6 in)

                                                     IR-Fusion® technology: Full screen

Level and span

Smooth auto and manual scaling

Fast auto toggle between manual and auto modes: Yes

Fast auto-rescale in manual mode: Yes

Minimum span (in manual mode): 2.0 °C (3.6 °F)

Minimum span (in auto mode): 3.0 °C (5.4 °F)

Data storage and image capture

Extensive memory options: Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage

Image capture, review, save mechanism: One-handed image capture,review, and save capability

Image file formats: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files

Memory review: Thumbnail and fullscreen review

Software: SmartView® software - full analysis and reporting software and Fluke Connect® system

Export file formats with SmartView® software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF

Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required

IR-PhotoNotes™ Yes (5 images)

Text annotation: Yes

Video recording: Standard and radiometric

File formats video: Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)

Streaming video (remote display): Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor

Remote control operation: Yes, through SmartView® software or Fluke Connect® mobile app

Auto capture (temperature and interval): Yes

Battery

Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level

Battery life: 3-4 hours per battery (*Actual life varies depending on settings and usage)

Battery charge time: 2.5 hours to full charge

Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter

AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)

Power saving: User selectable sleep and power off modes

Color palettes

Standard palettes: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

Ultra Contrast™ palettes: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General specifications

Frame rate: 60 Hz or 9 Hz versions

Laser pointer: Yes

LED light (torch): Yes

Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)

Center-point temperature measurement: Yes

Spot temperature: Hot and cold spot markers

User-definable spot markers: 3 user-definable spot markers

Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display

Infrared spectral band: 7.5 μm to 14 μm (long wave)

Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)

Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F) without batteries

Relative humidity: 10% to 95% non-condensing

Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2

Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A

Australian RCM: IEC 61326-1

US FCC: CFR 47, Part 15 Subpart B

Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6

Shock: 25 g, IEC 68-2-29

Drop: Engineered to withstand 2 meter (6.5 feet) drop with standard lens

Size (H x W x L): 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)

Weight (battery included): 1.04 kg (2.3 lb)

Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)

Warranty: Two-years (standard), extended warranties are available

Recommended calibration cycle: Two-years (assumes normal operation and normal aging)

Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
