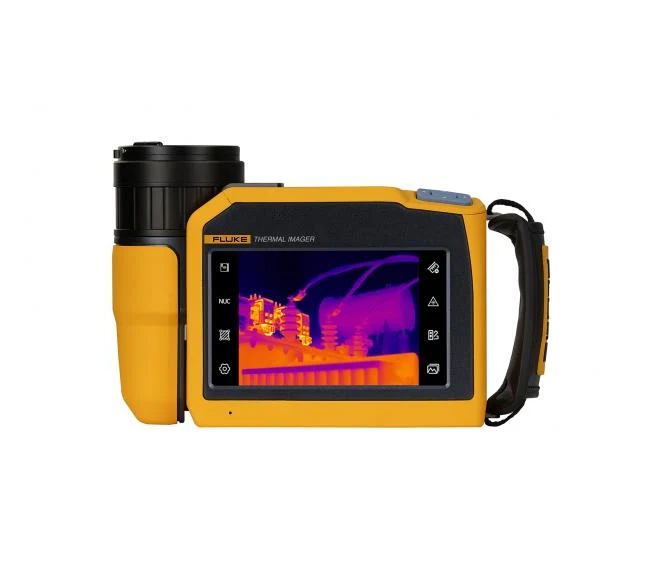

FLUKE FLUKE-TIX870/APAC 热像仪 (640 × 480; 0.68 mRad; -40°C ~700°C)

  • 制造商:FLUKE
    Model: FLUKE-TIX870/APAC
    P/N: 5498975
    来源: China/Taiwan
    • 报价要求 Request a Quotation
  • 联系
  • 现货: 1
    • 加入购物车
    • 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Detector:

IR Resolution: 640 × 480

SuperResolution: -

Thermal Sensitivity* (* Under best case scenario): <35 mK @ 30 °C

Field of View (FOV): 25° × 19°

Spatial Resolution (IFOV): 0.68 mRad

Digital Zoom: 1 to 25x

Detector Type: Focal Plane Array (FPA), Uncooled Infrared Detector

Spectral Response: 8 to 14 um

Lens Aperture: F 1.0

Lens Recognition: Auto

Minimum Focus Distance: 0.2 m

Focus System: Auto/Manual

Frame Rate: 9 Hz

Measurement and Analysis:

Temperature Range: -40 °C to 700 °C

Temperature Measurement Range: -40 °C to 150 °C;  0 °C to 350 °C; 0 °C to 700 °C

Temperature Accuracy: ±2 °C or ±2% of reading, whichever is greater (normal temperature, 23 °C typical)

Custom Temperature Measurement Point: 10 points

Custom Temperature Measurement Area: 10 areas (circle or rectangle)

Line Temperature Measurement: 10 lines

Image Display:

Display: OLED touchscreen, 170° visual range

Display Size: 5.5 inches

Display Contrast: 100000: 1

Display Resolution: 1920 × 1080 pixels, 1080P UHD display

Power and Environment:

Battery Type: Li-ion batteries (3 pcs)

Battery Life: > 3.5 hrs for continuous use @ ambient temperature of 25 °C

Weight: 1550 g (with battery)

Dimensions: 148 mm × 204 mm × 86 mm

Certification Standards: IEC 61326-1:Industrial Electromagnetic Environment; CISPR 11:Group 1, Class A

Tripod Mounting Base: UNC 1/4''-20 Standard Tripod Mounting Thread

Accessories:

- Fluke Ti Thermal Camera (standard lens)

- Rechargeable Li-ion Batteries (3 pcs)

- Power Adapter

- Battery Charger

- Lens Cover

- USB Cable

- HDMI Cable

- High-Speed SD Card

- Card Reader

- Safety Information

- Quick Reference Guide

- Hand Strap

- Neck Strap

- Hard Carrying Case
