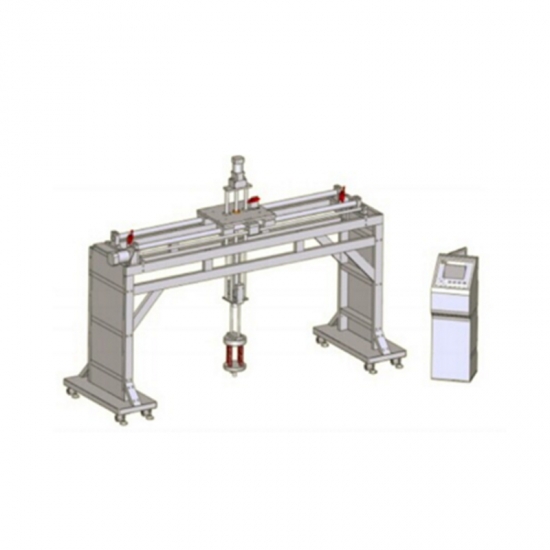

GESTER GT-LA09B 床垫综合性能测试仪 (5000N)

This machine is the newest design bed and mattress comprehensive performance tester according to EN 1725 standard.

Controller: PLC Touching Screen Control

Motor: Panasonic

Number of loading cylinders: Double

Load sensors: 5000N, American Celtron

Durability test:

Test load: 1000N

Loading pad diameter: ⊄200mm

Spherical radius: R300mm

Edge radius: R12mm

Test cycle: 1000 cycles/per point

Load maintain time: 3±1s

Vertical impact test:

Impactor surface diameter: ⊄200mm

Impactor surface spherical radius: R300mm

Impactor surface edge radius: R12mm

Impactor total mass:  25+0.1kg

Impactor spring rate: 6.9±1 N/mm

Impact height: 180mm

Bed edge durability:

Test load: 1000N

Test cycles: 5000cycles

Maintain time:  3±1s;

Vertical static load:

Test load: 1400N

Loading pad diameter: ⊄200mm

Spherical radius: R300mm

Edge radius: R12mm

Test cycle: 10cycles/per point

Load maintain time 10±1s

Bed edge Vertical static load test:

Small Loading pad diameter: ⊄100mm

Edge radius: R12mm

Test Load: 1200N

Load maintain time: 1min

Power supply: 1φ,AC,220V 50/60Hz

Dimension (LxWxH): 2.6*2.4*1.8m

Weight (kg): ≈900kg

Standard accessories:

Loading pad: 1 set

Impactor:1 set

Edge loading pad: 1 set

Small loading pad: 2 set
