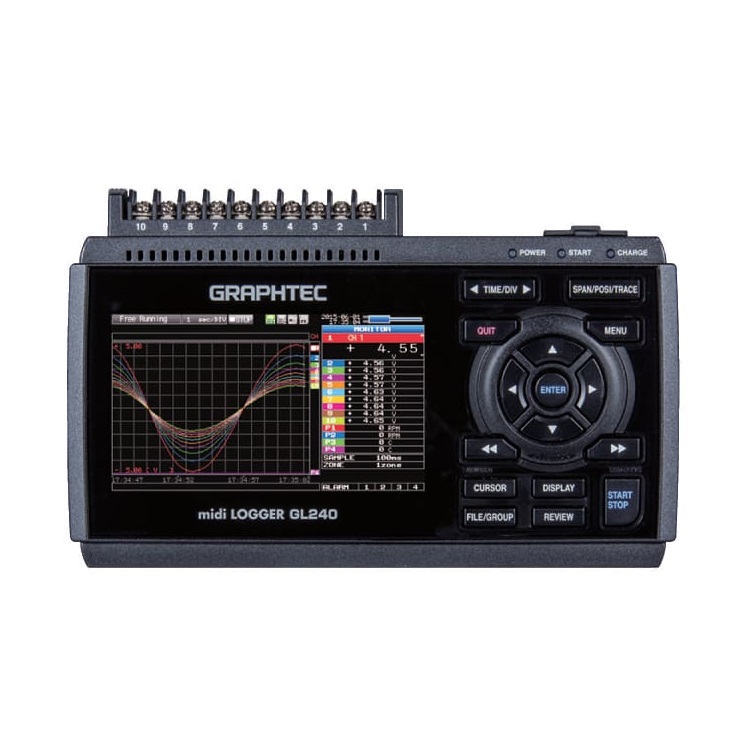

GRAPHTEC GL240 E 数据记录器

Voltage: 20mV - 100V , 1-5 V/F.S.

Thermocouple: K, J, E, T, R, S, B, N, W (WRe5-26)

Humidity: 0 to 100 % RH - using the humidity sensor (option B-530)

Number of analog input channels: 10 channels

Sampling interval: 10 ms to 1 hour (10ms to 50ms: voltage only), External signal

Time scale of waveform display: 1 sec. to 24 hour /division

Storage: Build-in 4GB Flash Memory, 1 SD card slot (SDHC, upto 32GB)

Display: 4.3 inch color TFT

Operating environment: 0 to 45ºC, 5 to 85%RH (non condensed)

Power source: 100 to 240VAC, 50/60Hz; 8.5 to 40VDC; battery pack 7.2VDC, 2900mAh

Power consumption: Max. 36VA

Dimensions (W x D x H): 188 x 117 x 42mm

Weight: 500g

Details

Datasheet
