The NEOPULSE 220 C XL is a single-phase pulsed MIG/MAG generator with digital technology. Designed for the highest performance level using the latest technology, it features numerous synergic curves and exceptional arc quality/performance. Intuitive and highly functional, the digital interface allows for quick and easy modifications of the
welding parameters. Fitted with an accurate and powerful 4 drive roll feeding system, the NEOPULSE 220 C XL offers manufacturers maximum productivity.
+ MIG/MAG :
- steel and stainless steel wire: Ø 0.6 to 1.0 mm
- aluminium wire: Ø 0.8 to 1.2 mm
- CuSi and CuAl wire: Ø 0.8 to 1.0 mm
+ MMA DC / Pulse : basic, rutile and cellulosic electrodes (up to Ø 5 mm).
+ TIG DC Lift / Pulse.
+ SYNERGIC mode: After selecting 2 criteria (material/gas combination and the wire diameter),
+ NEOPULSE automatically works out the optimal welding conditions while still allowing you to adjust the settings (wire feed rate, voltage, current, arc length).
+ Calibration of the wire feed speed to adjust the displayed voltage measurement and refine the energy calculation.
+ Energie, display and energy calculation after welding based on standards EN1011-1, ISO / TR 18491 and QW-409.
+ Portability : load/backup user JOBS and machine configuration from a USB key.
+ Traceability : trace / record all welding steps, cord by cord, during industrial manufacturing in line with standard
EN ISO 3834.
OPTIMISED MIG/MAG SETTINGS
+ Welding processes: Manual, Dynamic STD, Pulsed, Arc + Module (variation of hot / cold current)
TACK modes: SPOT and DELAY.
+ Trigger options supported: 2T and 4T.
+ Precise control over the welding cycle : CreepSpeed, + Softstart, Hotstart, Upslope, Downslope, Crater Fill, Postgas, etc.
+ 4 microprocessors giving four times the processing power.
+ High productivity thanks to high duty cycle (150 A @ 60%).
+ Compatible wire reels: Ø 200 mm.
+ Powerful 4 roller wire-feeder for efficient wire feeding.
+ Very high arc voltage for easier ignition and exceptional arc dynamic.
+ New user friendly interface focused on welders’ navigation habits.
+ Update of the machine and synergies using a USB key.
+ Storage of 500 welding programs (can be saved on USB stick).
+ Displays current/voltage during and after welding (WPS/PQR).
+ Choice of the main parameter to display on the screen (wire speed, average welding current, etc.).
+ Intelligent ventilation management to reduce power consumption, dust intake and noise.
+ Compatible torch Push Pull (24 V).
ROBUST AND MOBILE
+ Reinforced metal case & non slip rubber pads.
+ IP23S case.
+ 2 handles for easier mobility.
Welding current: 230 V, 1 ph, 50/60 Hz
Power supply: 16 A
Welding current range: (MIG/MAG, TIG, MMA): 10-220 A
Duty cycle (environment temp. at 40°C):
@ 20 %: 10-220 A
@ 60%: 150 A / 21.5 V
@ 100%: 130 A / 20.5 V
@ 20 %: 220 A / 28.8 V
@ 60%: 150 A / 26 V
@ 100%: 150 A / 26 V
@ 20 %: 220 A / 18.8 V
@ 60%: 160 A / 16.4 V
@ 100%: 150 A / 16 V
Wire feed speed: 0.5 - 20 m/min, 4 rollers (2 motor)
Supported wire reels: Ø200-300 mm
+ Steel/Inox: 0.6 - 1 mm
+ Aluminum: 0.8 - 1.2 mm
+ CuSi/CuAl: 0.8 - 1 mm
+ Cored wire: 0.9 - 1.2 mm
No-load voltage: 80 V
Protection level: IP 23S
Dimensions (L x w x h): 61 x 32 x 49 cm
Weight: 30 kg
Standard: IEC 60974-1/5/10 A

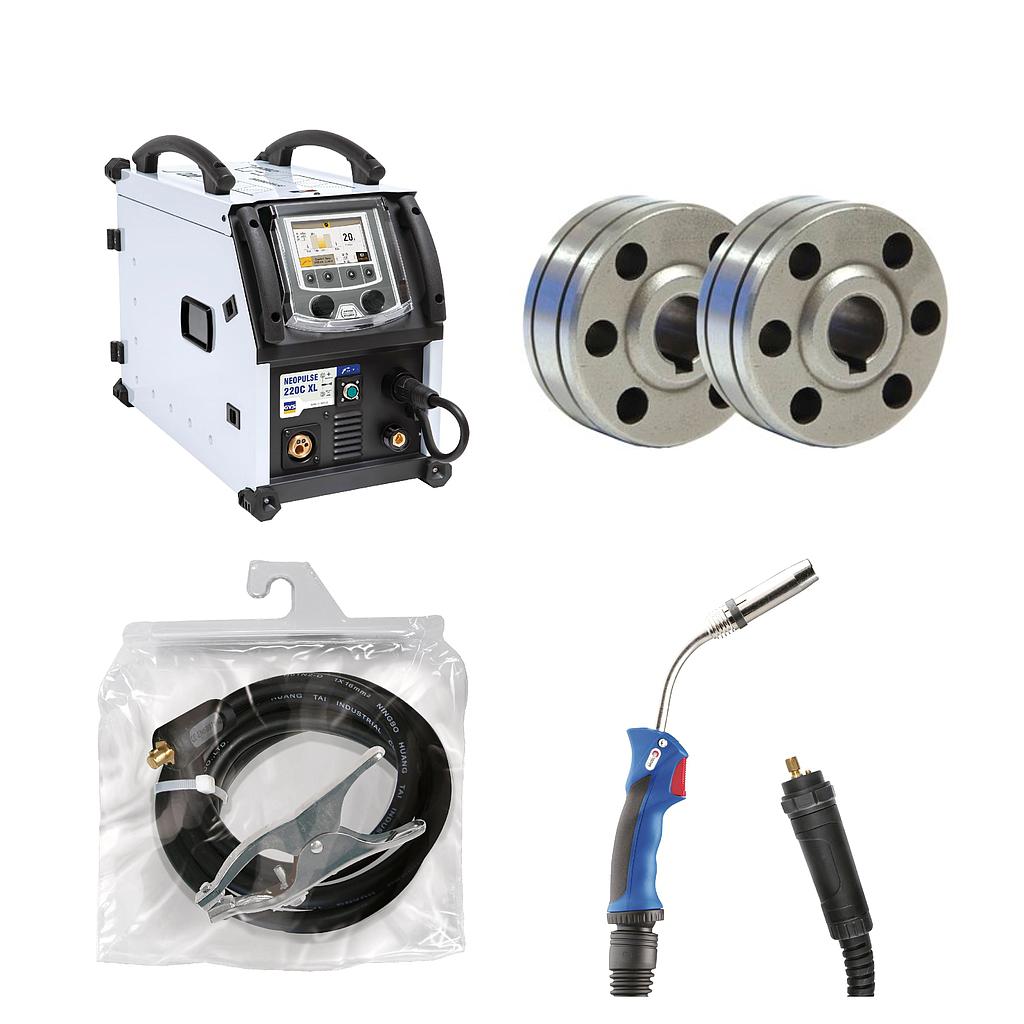

Original equipment (roller): 0.8/1.0 - B (steel, inox)
Roller type B (x2) original equipment Ø 1.0/1.2 (steel/ inox); Ø 1.0/1.2 aluminum- 040915
Roller type F (x4) original equipment Ø 1.0/1.2 (thép/ inox); Ø 1.0/1.2 aluminum- 061903
Earth cable (4 m) 400A-35mm²-043817
Torch MIG/MAG GRIP aluminum 250A-3m 040724
