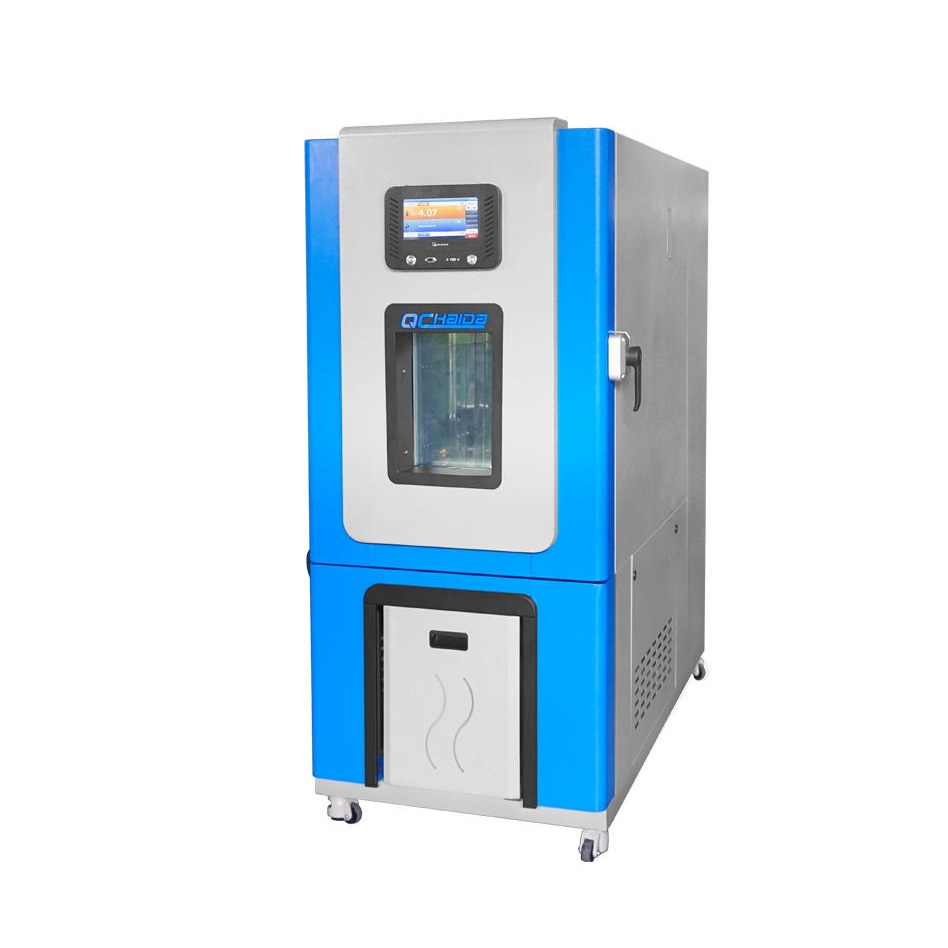

HAIDA HD-E702-150 湿度试验箱

Internal dimension (W*D*H): 500*500*600mm

External dimension (W*D*H): 700*1280*1480mm

Temperature range: -70~+150℃

Temperature fluctuation: ±0.5℃

Temperature uniformity: 2℃

Humidity range: 20~98%RH (Refer Image below)

Humidity fluctuation: ±2.5%RH

Humidity uniformity: 3%RH

Cooling speed: 1℃/min in average (without loading)

Heating speed: 3℃/min in average (without loading)

Internal chamber material: SUS#304 stainless steel, mirror finished

External chamber material: Stainless steel

Cooling method: Air cooling

Controller: LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material: 50mm high density rigid Polyurethane foam

Heater: Explosion-proof type SUS#304 stainless steel fins radiator pipe heater

Compressor: France Tecumseh compressor x 2sets

Lighting: Heat resistance

Temperature sensor: PT-100 dry and wet bulb sensor

Observation window: Tempered glass

Testing hole: Diameter 50mm, for cable routing

Sample tray: SUS#304 stainless steel, 2pcs

Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage
