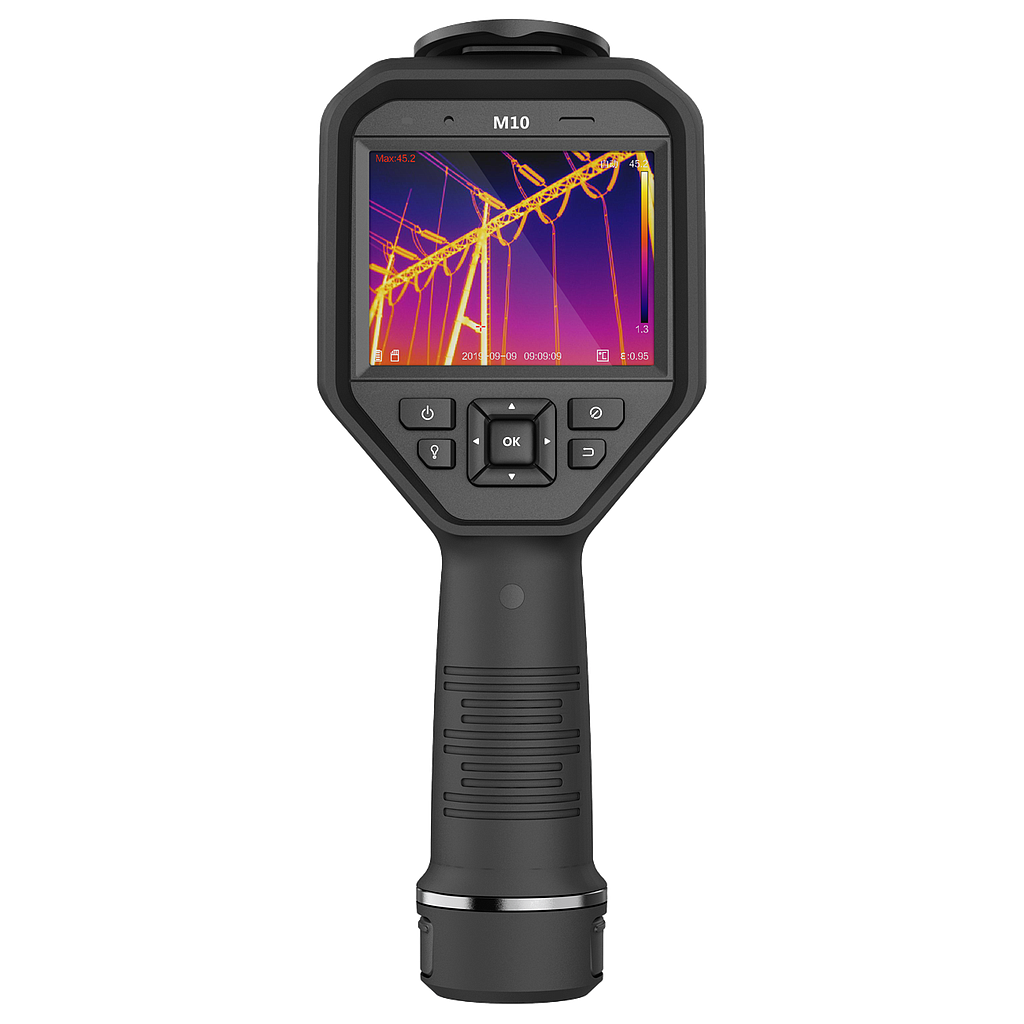

HIKMICRO HM-TP21-6VF/W-M10 手持式热成像照相机 (-20~550°C; 160x120px; Zoom 4X)
制造商: HIKMICRO Model: HM-TP21-6VF/W-M10 P/N: M10 来源: China 保障: 12 Month - 报价要求
- 联系
Thermal Module
Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays
IR resolution: 160 × 120 (19 200 pixels)
Temperature measurement range: -20°C - 550°C (-4°F~1022°F)
Pixel pitch: 17μm
Spectrum range: 8-14μm
NETD < 40mK (@25°C, F#=1.0)
6mm lens
Thermographic accuracy: ±2℃ / ±2%
Focal length: 6.2mm
FOV (Field of View): 25°×18.7°
Minimum focus distance: 0.2 m (0.66 ft)
Focus: Manual
IFOV (Spatial Resolution): 2.74 mrad
Image frequency: 25Hz
Aperture: F1.1
Optical Module
Picture resolution: 2 MP, 5 MP, 8 MP
Video resolution: 640 × 480
Focus: Fixed
FOV: 25° × 18.7°
Display: 640 × 480 Resolution, 3.5’’ LCD Touch Screen
Digital Zoom: 4X
Storage
Storage media: Removable Micro SD Card (16 GB)
Image storage capacity: 30 000 Images
Image file format: JPEG with Measurement Data Included
Video storage capacity: 10 hours
Video file format: MP4
Power System
Power supply: 12 V DC/1.5A, 5V DC/2A (Charging via USB)
Power consumption: 4.2 W
Battery type: Dismountable and Rechargeable Li-ion Battery
Battery operating time: 5 Hours Continuous Running
General
Menu language: 18 Languages
Working temperature range: -20°C~50°C (4°F~122°F)
Storage temperature range: -20°C~60°C (-4°F~140°F)
Protection level: IP54
Drop Test Height: 2 m (6.56 ft)
Interface: USB Type-C
Weight: Approx. 653 g (1.44 lb)
Dimension: 244 mm × 100 mm × 104 mm (9.6"× 3.9"× 4.1")
