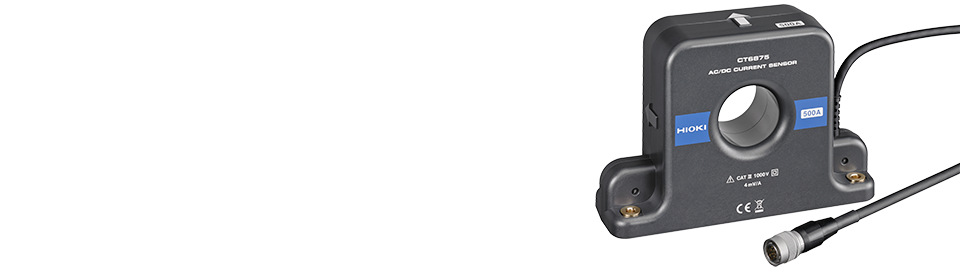

HIOKI CT6875 AC/DC CURRENT SENSOR (500A)

Rated current : 500A AC/DC

Max. allowable input : Within the derating range, up to ±1500 Apeak (design value) allowed at 40°C or less for 20 ms or less

Frequency bandwidth : Amplitude: DC to 2 MHz (CT6875), DC to 1.5 MHz (CT6875-01)

Phase: DC to 1 MHz

Basic accuracy : (DC, 45 Hz ≤ f ≤ 66 Hz) Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.1°

Output voltage rate : 4 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit. Use with voltage input equipment with high input impedance such as 1 MΩ)

Max. rated voltage to earth  : 1000 V AC/DC (50/60 Hz, CAT III )

Core diameter : φ 36 mm (1.42 in)

Operating temperature, humidity -40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)

Power supply : Power suppled via the Power Analyzer PW6001, PW3390, or Sensor Unit CT9555, CT9556, CT9557

Max. rated power : 7 VA max. (at 500 A/55 Hz)

Dimensions and mass : 160 mm (6.30 in)W × 112 mm (4.41 in)H × 50 mm (1.97 in)D, CT6875: 800 g (28.2 oz), cable length 3 m (9.84 ft), CT6875-01: 1100 g (38.8 oz), cable length 10 m (32.81 ft)

Accessories : Instruction manual ×1, Mark bands ×6, Operating precautions ×1
