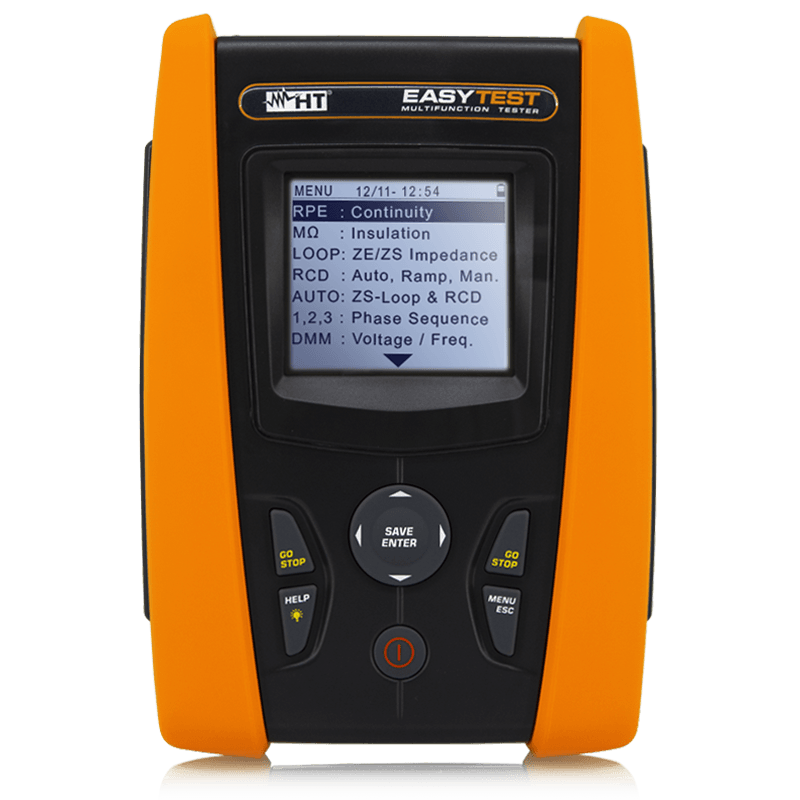

HT Instruments EASYTEST 电气万用表 (15~460V, 47.5~52.5, True RMS, RCDs type A)

AC TRMS VOLTAGE

Range (V): 15~460

Resolution (V):1

Accuracy: ±(3.0%rdg + 2dgt)

FREQUENCY

Range (Hz): 47.50 ~ 52.50

Resolution (Hz): 1

Accuracy: ±(0.1%rdg + 1dgt)

CONTINUITY OF PROTECTION CONDUCTORS WITH 200mA

Range (Ω): 0.00 ~ 9.99

                   10.0 ~ 99.9

                   100 ~ 1999

Resolution (Ω): 0.01

                          0.1

                          1

Accuracy: ±(5.0%rdg + 3dgt)

INSULATION RESISTANCE

DC test voltage (V)/ Range (MΩ)

50 / 0.01 ~ 9.99

       10.0 ~ 49.9

       50.0 ~ 99.9

100 / 0.01 ~ 9.99

        10.0 ~ 99.9

        100 ~ 199

250 / 0.01 ~ 9.99

        10.0 ~ 99.9

        100 ~ 249

        250 ~ 499

500 / 0.01 ~ 9.99

        10.0 ~ 199.9

        200 ~ 499

        500 ~ 999

1000 / 0.01 ~ 9.99

          10.0 ~ 199.9

          200 ~ 999

          1000 ~ 1999

MECHANICAL CHARACTERISTICS

Dimensions (L x W x H): 225 x 165 x 75mm (9 x 6 x 3in)

Weight (batteries included): 1.2kg (42 ounces)

Mechanical protection: IP40

POWER SUPPLY

Battery type: 6x1.5V alkaline batteries type AA IEC LR06 or 6 x1.2V rechargeable NiMH type AA

Battery life: > 500 tests for each function

Auto power OFF: after 5 minutes’ idling (if activated)

ENVIRONMENTAL CONDITIONS FOR USE

Reference temperature: 23°C±5°C (73°F~41°F)

Operating temperature: 0°C±40°C (32°F~104°F)

Allowable relative humidity: <80%RH

Storage temperature: -10°C±60°C (14°F~140°F)

Storage humidity: <80%RH

Max. operating altitude: 2000m (6562ft)

STANDARD ACCESSORIES

User manual on CD-ROM and quick guide

Calibration report

BORSA75

C2033X

UNIVERSALKIT COMBI

TOPVIEW2006

OPTIONAL ACCESSORIES

SP-0500

VA500

PR400

606-IECN
