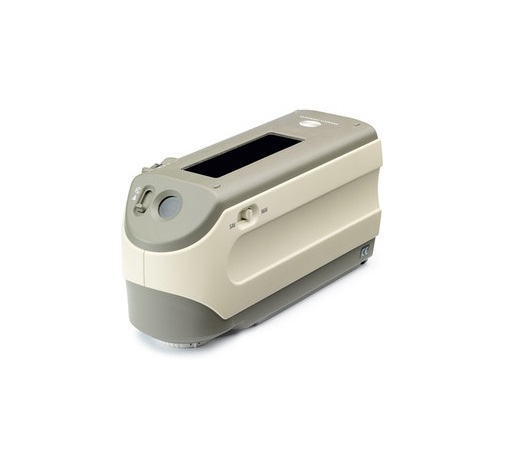

KONICA MINOLTA CM-2600d Portable Spectrophotometer

• Sphere Size: Ø 52 mm

• Light-receiving element: Silicon photodiode array (dual 40 elements)

• Spectral separation device: Diffraction grating

• Wavelength range: 360 nm to 740 nm

• Wavelength pitch: 10 nm

• Half bandwidth: Approx. 10 nm

• Reflectance range: 0 to 175%, resolution: 0.01%

• Light source: 3 pulsed xenon lamps

• Measurement time: Approx. 1.5 seconds (approx. 2 seconds for fluorescent measurement)

• Minim um interval between measurements: 3 seconds for SCI/SCE (4 seconds for fluorescent measurement)

• Battery perfomance: Alkaline manganese:approx. 1000 measurements

• Measurement/illumination area:

MAV : Ø 8 mm / Ø 11 mm

SAV : Ø 3mm / Ø 6 mm (Selectable between MAV and SAV)

• Interface: RS-232C standard

• Observer condition: CIE: 2° and 10° standard observer

• Illuminant condition: CIE: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (simultaneous evaluation is possible using two light sources)

• Display data: Spectral value/graph, colorimetric value, color difference value/graph, PASS/FAIL result

• Color space / colorimetric data: L*a*b*, L*C*h, CMC (1:1), CMC (2:1), CIE94, Hunter Lab, Yxy, Munsell, XYZ, MI, WI (ASTM E313), YI (ASTM E313/ASTM D1925), ISO Brightness (ISO 2470), Density statusA /T, WI/Tint (CIE/Ganz), CIE00

• Data memory: 1700 sets of data (as SCI/SCE 1 data) * 700 sets of data in the "defined in COND." mode.

* Total of the sample data for the COND and TASK modes and color diference target data

• Tolerance judgment: Tolerance for color difference (both box and eliptical tolerances can be set)

• Power source: 4 AA-size battery or AC adapter AC-A305

• Dimensions (W × H × D): 69 × 96 × 193 mm

• Weight: Approx. 670 g (without batteries)

• Operating temperature / humidity range (*1): 5 - 40°C, relative humidity 80% or less (at 35°C) with no condensation

• Storage temperature/humidity range: 0 - 45°C, relative humidity 80% or (at 35°C) with no condensation

• Standard accessories: White calibration plate, Target mask Ø 8 mm, Target mask Ø 3 mm , RS-232C cable, AC adapter,AA-size battery (×4)

• Optional Accessories: Hard case, Dust cover set, Dust cover, SpectraMagic™NX (software), Zero calibration box.
