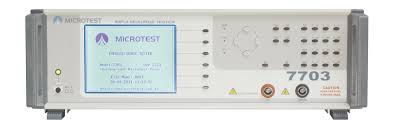

MICROTEST 7703 线圈层间短路测试仪 (5000V)

Channel:2

Impulse Voltage:200V ~ 5000V

Lowest Inductance Value:0.5uH

Accuracy:±2%

Measurement Time:50mS

Measurement Mode:The comparison between standard and test wave forms

Indicators:Pass/Fail HV LED red-green indicator lights/Screen Display/Sound

Power Supply:Voltage 98 ~ 132Vac or 192 ~ 264Vac

Display: 320*240 dot-matrix display

Interface:RS-232, Print Port, Remote Control

Flash Memory: Storage of 200 rewritable data sets

Operation: Auto, Manual

Environment: Temperature :  10℃ ~ 40°C    Humidity : 10 ~ 90%

Dimension (W*H*D):435x178x525 mm

Weight:8 Kg


Standard Accessories:Power Cord,User Manual,HV Test Cable,D-Sub footswitch

Optional Accessories:RS-232cable,Remote Cable
