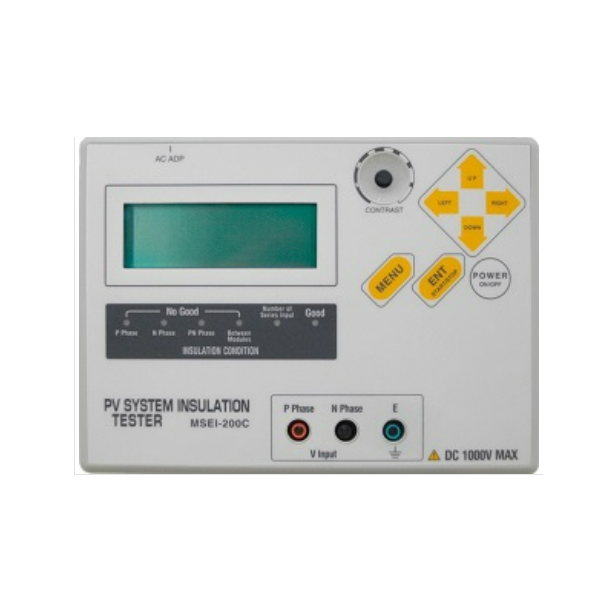

MULTI MSEI-200C 绝缘电阻测试仪 (DC0.01~999.9V, 0.01~19.99MΩ)

Measuring Function: Generated Voltage; Insulation Resistance (between P phase/N phase/PN phase/Module)

Measuring Range

      Voltage: DC0.01~999.9V

      Resistance:0.01~19.99MΩ

Accuracy (Voltage): ±1%rdg±10dgt

Accuracy (Resistance):

      1~10MΩ:±5%rdg

      10.01~19.99MΩ:±10%rdg

Measuring Interval: 30/180/300/600/900sec

Circuit Voltage: DC1000V PV Generation Circuit

Operation Temp: -10℃~+60℃ <85%RH without condensation

Power Supply: AA alkaline battery LR-6 x 4 or AC adaptor (option)

Dimension/Weight: W190×H140×D42mm approx.600g

Accessories:

      Voltage input cable ×1set

      Carrying case ×1

      AA alkaline battery ×4

      Instruction manual ×1
