Bus Connector: PXI Hybrid
Digits of Resolution: 6.5
DC Voltage Range: -300 V to 300 V
DC Current Range: -3 A to 3 A
L&C Measurements: No
Maximum Sample Rate: 3 kS/s
Basic DC Voltage Accuracy: 90 ppm

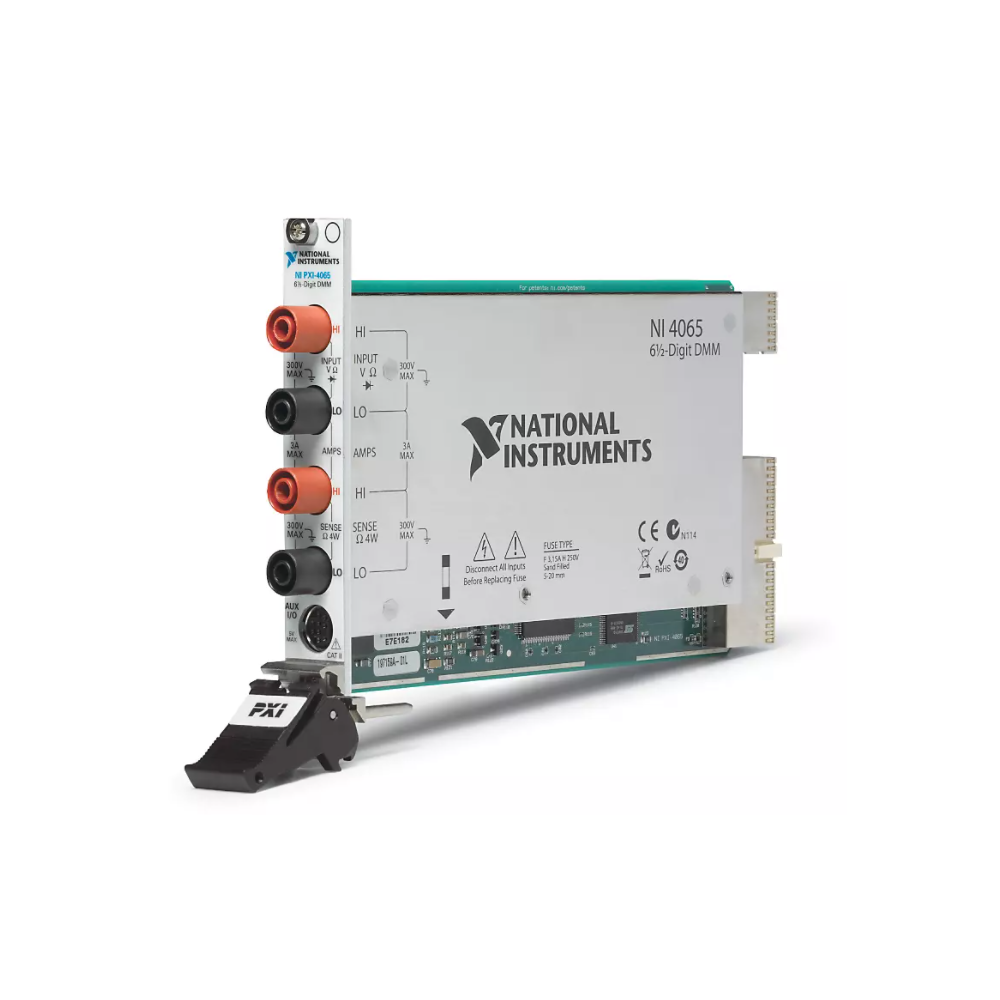

Performs voltage, current, resistance, temperature, inductance, capacitance, and frequency/period measurements, as well as diode tests, in PXI systems.
PXI Digital Multimeters, or DMMs, feature AC/DC voltage, AC/DC current, 2- or 4-wire resistance, and frequency/period measurements, as well as diode tests. You can also choose a PXI DMM with an isolated, high-voltage digitizer that can acquire waveforms at sample rates up to 1.8 MS/s at full input range, up to 3 A or 1,000 V. Additionally, you can choose a PXI DMM that can perform basic inductance and capacitance measurements.
