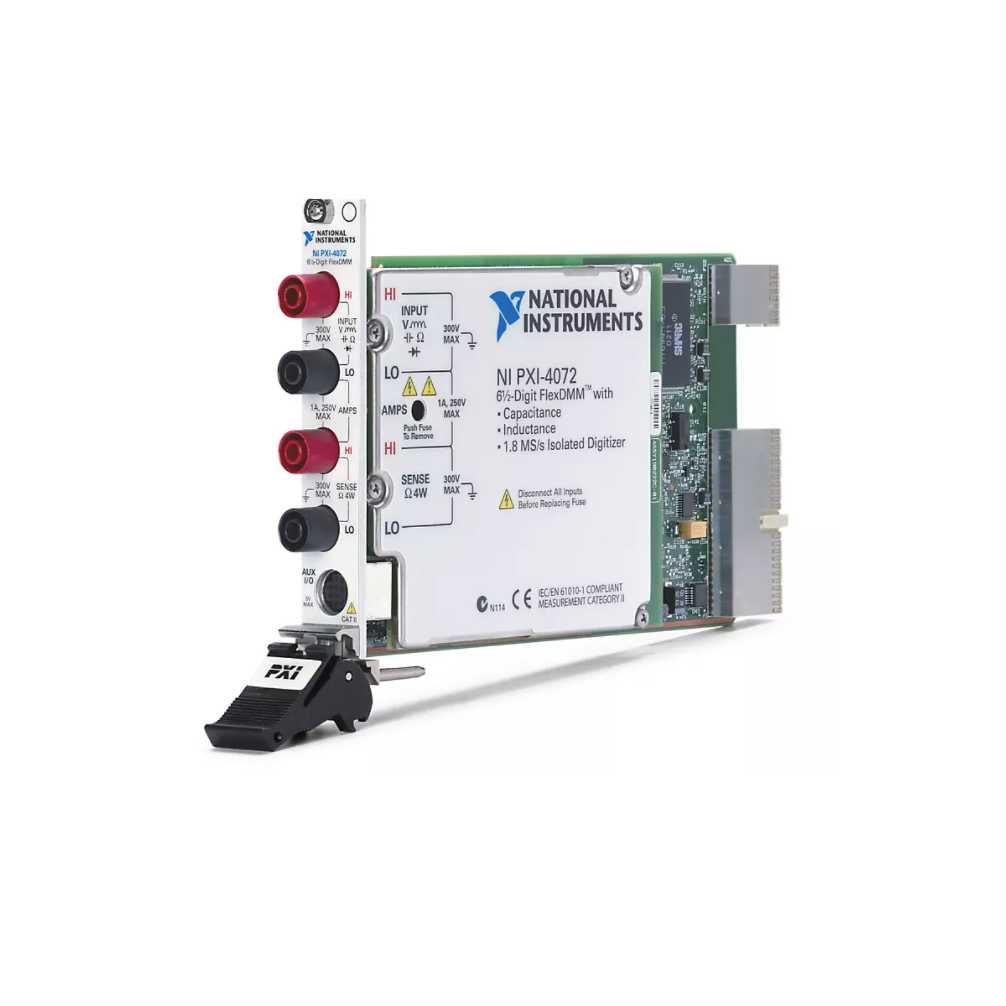

NI PXI-4072 PXI Digital Multimeter (DC ±300V/±3A, 1.8 MS/s, L&C Measurement)

Bus Connector: PXI Hybrid

Digits of Resolution: 6.5

DC Voltage Range: -300 V to 300 V

DC Current Range: -1 A to 1A

L&C Measurements: Yes

Maximum Sample Rate: 1.8 MS/s

Basic DC Voltage Accuracy: 25 ppm


Performs voltage, current, resistance, temperature, inductance, capacitance, and frequency/period measurements, as well as diode tests, in PXI systems.

PXI Digital Multimeters, or DMMs, feature AC/DC voltage, AC/DC current, 2- or 4-wire resistance, and frequency/period measurements, as well as diode tests. You can also choose a PXI DMM with an isolated, high-voltage digitizer that can acquire waveforms at sample rates up to 1.8 MS/s at full input range, up to 3 A or 1,000 V. Additionally, you can choose a PXI DMM that can perform basic inductance and capacitance measurements.
