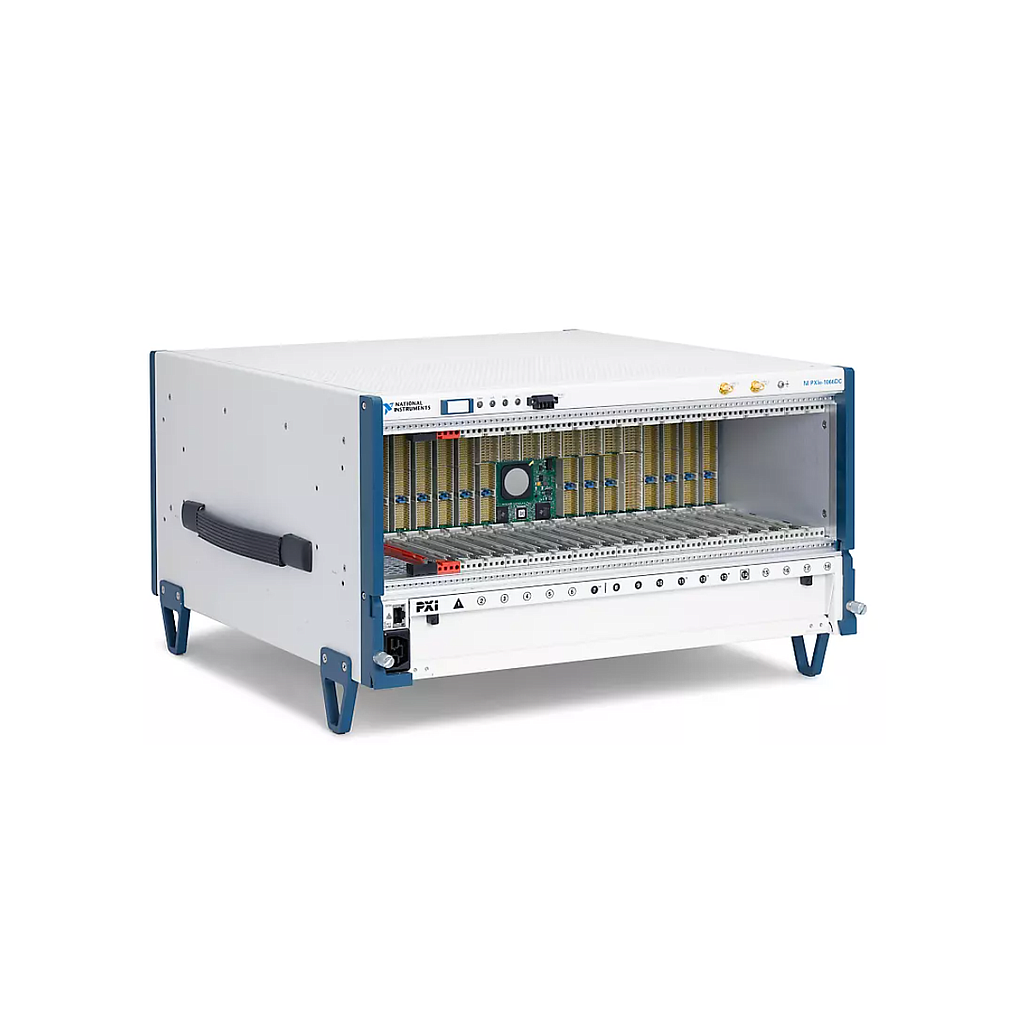

NI PXIe-1066DC PXI Chassis (18-slot, DC, 3 GB/s)

PXI Chassis Type: PXI Express

Slot Count: 18

Maximum System Bandwidth: 3 GB/s

Chassis Power Supply Type: DC

Slot Cooling Capacity: 38 W

Onboard Clock Type: VCXO

External Clocking: Yes

Number of PXI Express Slots: 4

Number of Hybrid Slots: 4

Number of PXI Slots: 9

System Timing Slot: Yes

External Trigger Access: No

Redundant HW Option: Yes


Houses PXI modules and connects them with a high-performance backplane that offers timing and synchronization capabilities.

PXI Chassis are compatible with PXI, PXI Express, and PXI hybrid modules and meet the cooling requirements of the most power-demanding PXI modules. You can also choose chassis options that minimize the overall system acoustic emissions. Chassis can provide up to 18 slots, with a mixture of both PXI and PXI Express module compatibility, and you can choose between AC and DC power options.
