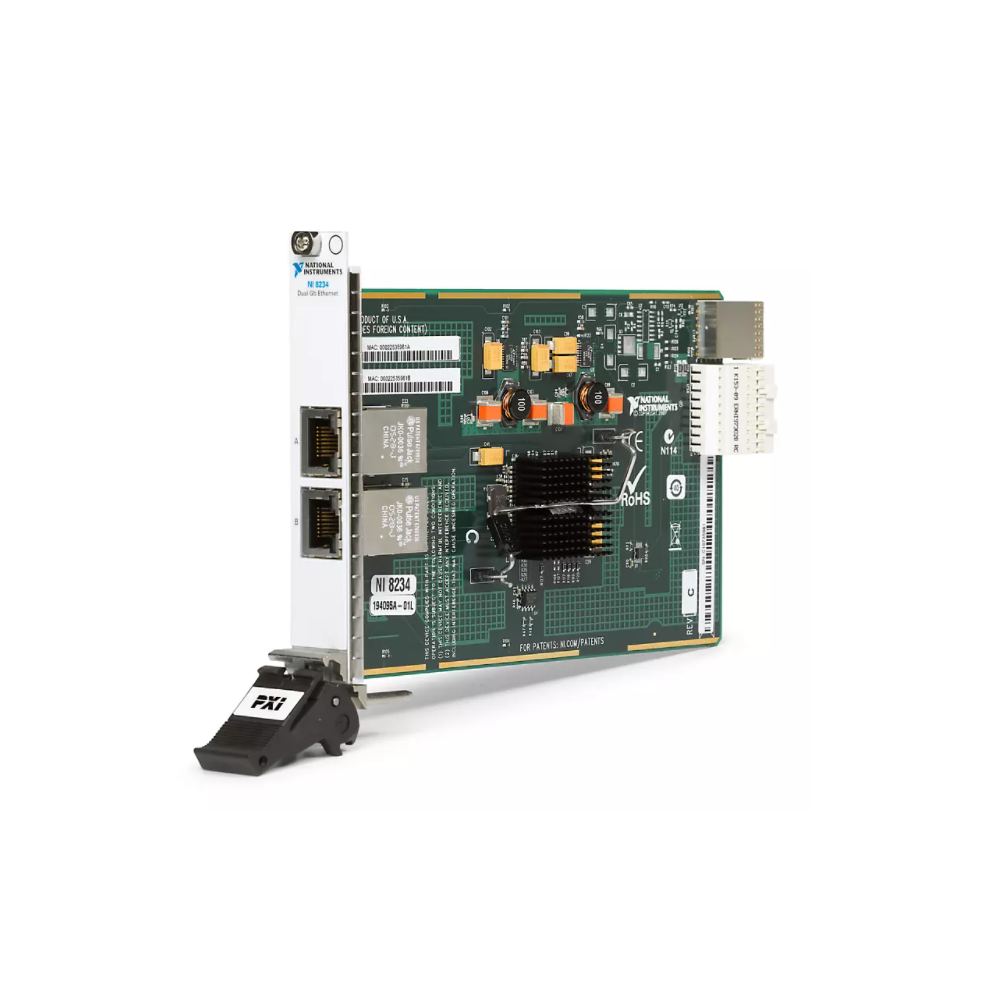

NI PXIe-8234 PXI Ethernet Interface Module (2-Port, 1 Gbits/s)

Ethernet Bandwidth: 1 Gbits/s

Number of Ethernet Ports: 2

Dimensions: 10.0 cm × 16.0 cm (3.9 in. × 6.3 in.)

Ethernet interface: Two 10P10C modular jack connectors

Slot requirements: One peripheral slot supporting a x4 PCIe connection (either PXIe/cCPIe slot or PXIe hybrid slot)

CompactPCI Express compliance: Version 1.0a

Compatibility: PXI Express Specification 1.0

                      CompactPCI Express Specification 1.0

Weight: 158 g (5.5 oz)

Native link width: x4

Signaling

Ethernet: 1000Base-T compliant on four pairs of Category 5 cable

Power Requirements

Typical

0.375 A at 3.3V

0.36 A at 5V

1.19 A at 1.8V

5.2 W maximum

Details

Enables Ethernet-based communication between PXI hardware and external instruments and devices and supports GigE Vision cameras without power over Ethernet (PoE).

The PXI Ethernet Interface Module equips PXI systems with high-bandwidth Ethernet-based connectivity with up to 40 Gb/s data rates per port. Featuring compatibility with industry-standard network and automatic cable polarity detection, this module is ideal for high-performance data transfer and vision applications on the PXI platform. These modules have independent bandwidth to support up to four GigE Vision cameras without PoE.

Datasheet
