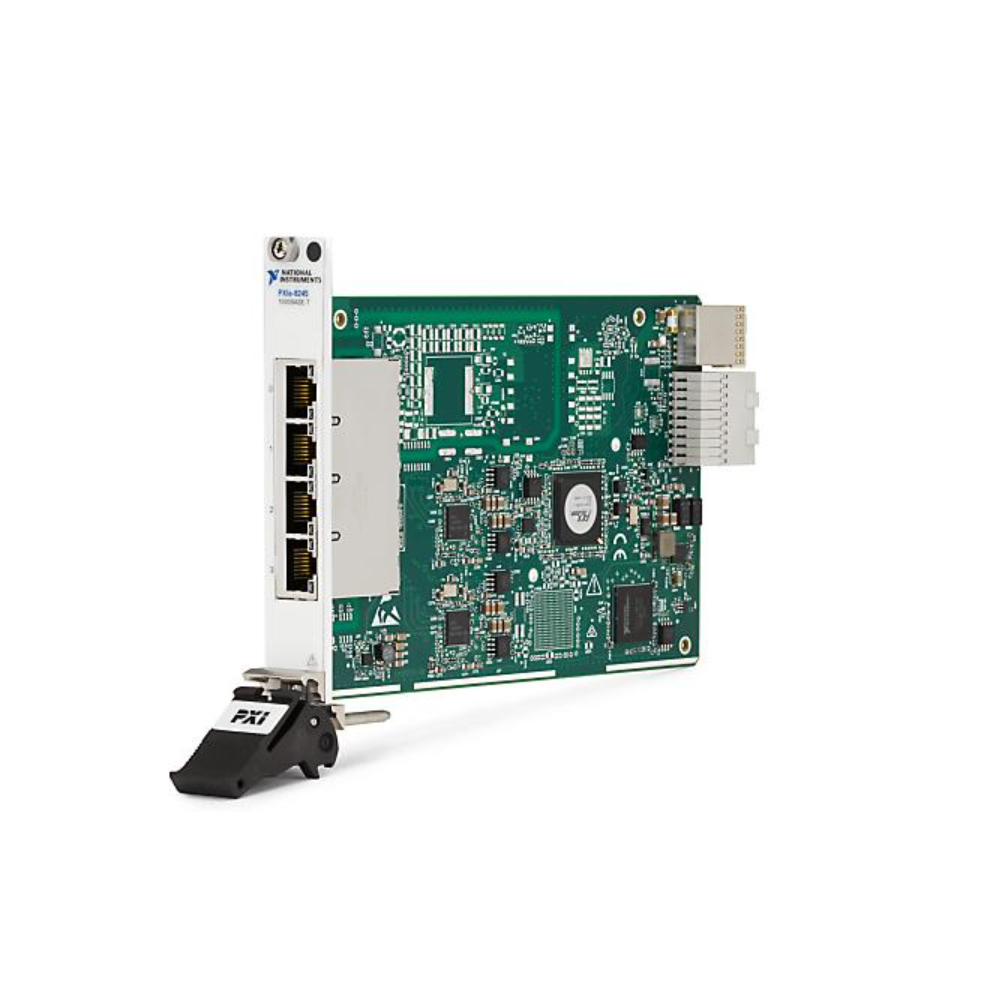

NI PXIe-8245 PXI Ethernet Interface Module (4-Port, 1 Gbits/s)

Ethernet Bandwidth: 1 Gbits/s

Number of Ethernet Ports: 4

Gigabit Ethernet Interface

Standard: IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T

Number of ports: 4

Interface: RJ45

Speed: 10 Mbps, 100 Mbps, 1000 Mbps

Bus Interface

Form factor: PXI Express Gen-2 x4

Slot compatibility: x4, x8, and x16 PXI Express or PXI Express hybrid slots

Power Requirements

Power requirements are dependent on your application.

+3.3 V 3 A

+12 V 0.5 A

Physical Characteristics

Dimensions (not including connectors): 21.6 cm x 2.0 cm x 13.0 cm (8.5 in. x 0.8 in. x 5.1 in.); 3U, one-slot PXI Express module

Weight: 153 g (5.4 oz)

I/O Connectors

Connector: Type RJ45

LED indicators

Ethernet: 1 Link/Activity LED and 1 Link Speed LED for each port


Details

Enables Ethernet-based communication between PXI hardware and external instruments and devices and supports GigE Vision cameras without power over Ethernet (PoE).

The PXI Ethernet Interface Module equips PXI systems with high-bandwidth Ethernet-based connectivity with up to 40 Gb/s data rates per port. Featuring compatibility with industry-standard network and automatic cable polarity detection, this module is ideal for high-performance data transfer and vision applications on the PXI platform. These modules have independent bandwidth to support up to four GigE Vision cameras without PoE.

Datasheet
