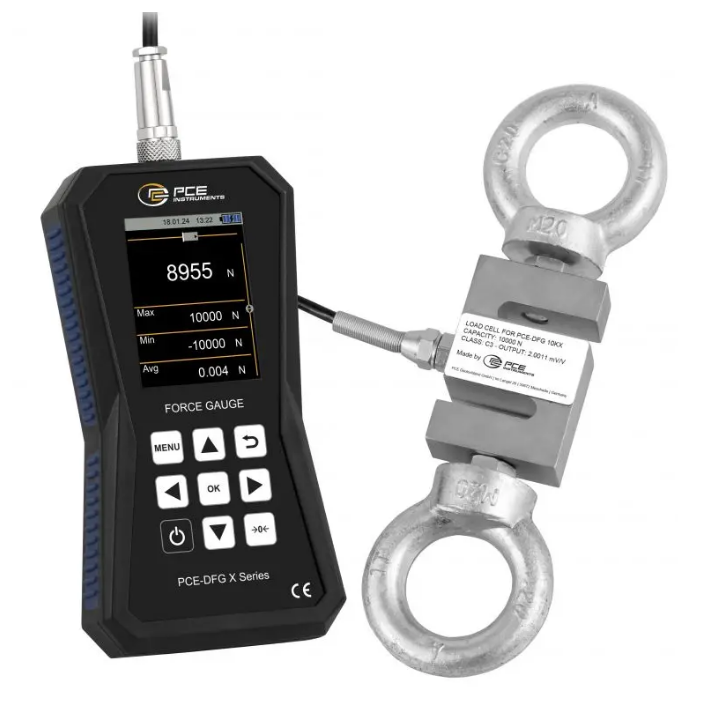

PCE PCE-DFG 10K X 测力计 (0~10000 N; 2 N)

- Force:

Measuring range: 0 ... 10000 N

Resolution: 2 N

Accuracy: ± 0.05 % F.S.

- General technical data:

Units: kPa, kg, g, ft, N, lb, t, kN, Pa, Nm, Ncm

Display type: LCD with illumination

Display size: 2.8 inch

Adjustable measurement rate: 1 ... 7200 Hz

Memory medium: Internal memory

Storage capacity: 32 GB

Memory interval of: 1 Hz

Memory interval up to: 7200 Hz

Operating time: 13 h

Automatic switch-off adjustable: 1 ... 15 min.

Automatic switch-off can be deactivated: Yes

Alarm: Optical, acoustic

Alarm modes: Inside, Outside, Crack, Switch off

Protection class measuring cell: IP67

Menu language: German, English, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese

Protection class (device): IP52

Power supply: USB 5 V DC, 500 mA

Weight: 255 g

Dimensions (L x W x H): 165 x 85 x 32 mm

Operating conditions: -20 ... 65 °C , 10 ... 95 % r.H

Storage conditions: -20 ... 65 °C , 10 ... 95 % r.H

- Delivery scope:

1 x PCE-DFG 10K X force gauge

1 x PCE-DFG 10K X load cell

2 x eyebolt with M10 thread

1 x case

1 x USB-C cable

1 x PC software

1 x operating instructions
