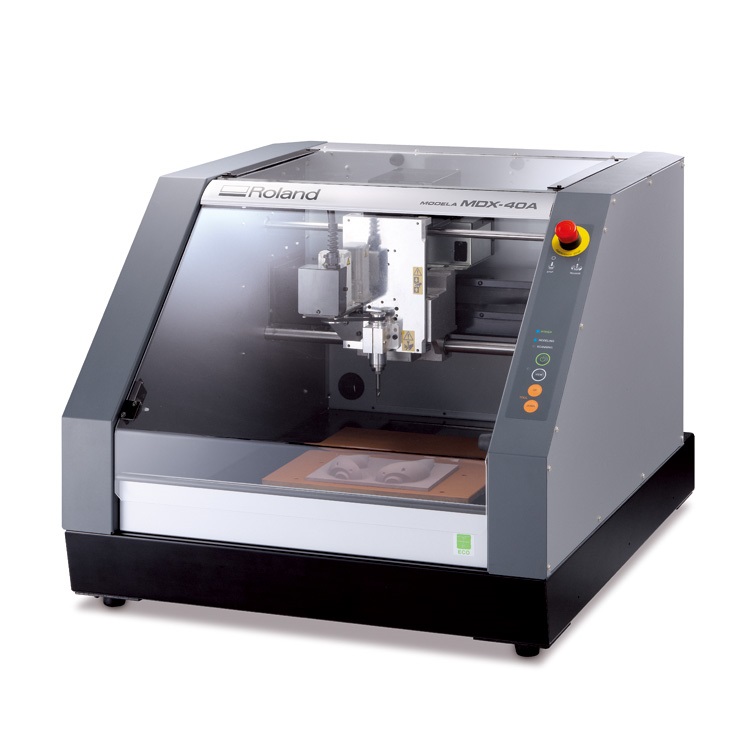

ROLAND MDX-40A 3D Milling Machine (4500~15000 rpm)

Acceptable material: Resins such as chemical wood and modeling wax (metal not supported)

X, Y, and Z operation strokes: 305(X)x305(Y)x105(Z) mm (12(X)x12(Y)x4.13(Z) in.)

Distance from collet tip to table: Maximum 123 mm (4.84 in.)

Table size: 305(W)x305(D) mm (12(W)x12(D) in.)

Loadable workpiece weight: 4 kg (8.8 lb)

XYZ-axis drive system: Stepping motor

Feed rate: XY-axis: 7 to 3,000 mm/min. (0.28 to 118 in./m)

               Z-axis: 7 to 1,800 mm/min. (0.28 to 70.8 in./m)

Software resolution:

              NC-code: 0.001mm/step (0.000039 in./step),

              RML-1: 0.01 mm/step (0.00039 in./step)(RML-1)

Mechanical resolution: 0.002 mm/step (0.000078 in./step) (micro-step control)

Spindle motor: Brushless DC motor, Maximum 100 W

Spindle rotation: 4,500 to 15,000 rpm

Interface: USB

Power requirements: AC100 to 240 ±10%, 2.1 A, 50/60 Hz (Overvoltage category II, IEC 60664-1)

Power consumption: Approx. 210 W

Acoustic noise level: No-load operation: 56 dB (A) or less, Standby: 42 dB (A) or less

Dimensions: 669(W)x760(D)x554(H) mm [26.4(W)x30(D)x21.9(H) in.]

Weight: 65 kg (144 lb)

Environment: Temperature: 5 to 40 °C (41 to 104 °F),

                      Humidity: 35 to 80% (no condensation)

Included items: Power cord, USB cable, collet (ZC-23-6), Z0 sensor, hexagonal wrench, hexagonal screwdrivers, spanners, Roland Software Package CD-ROM, SRP Player CD-ROM, user's manual, SRP Player installation and setup guide

Optional items:

Square end-mills

Ball end-mills

Collets (for end-mills)

Engraving cutters (for plastic)

Engraving cutters, quarter round (for plastic)

Engraving cutters, parallel (for plastic)

Solid collet

Adhesive sheet for securing material

Rotary axis unit

3D Scanning sensor unit

Replacement spindle unit

Dust box
