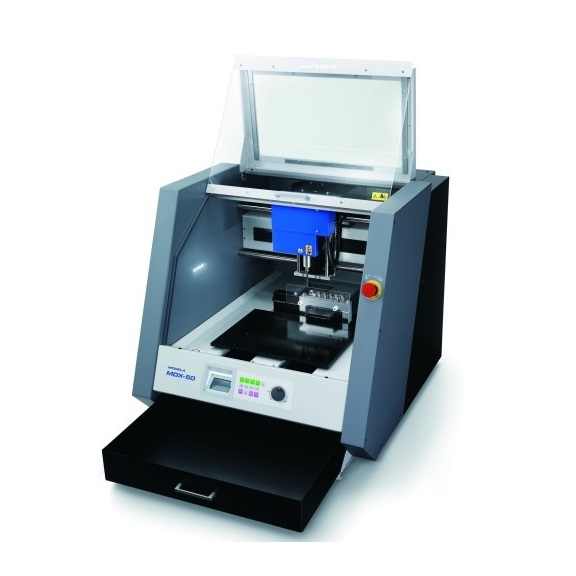

ROLAND MDX-50 台式铣床 (4500~15000rpm)

Cuttable material: Resins such as chemical wood and modeling wax (metal not supported)

Operating range: 400(X)×305(Y)×135(Z) mm (15.8(X)×12.0(Y)×5.3(Z) in.)

Loadable workpiece size: 400(X)x305(Y)×100(Z) mm (15.8(X)×12.0(Y)×3.9(Z) in.)

XYZ-axis drive system: Stepping motor

Operating speed: XY-axis: 7 to 3600 mm/min (0.3 to 141.7 in./min)

                            Z axis: 7 to 3000 mm/min (0.3 to 118.1 in./min)

Software resolution: 0.001 mm/step (0.039 mil/step: RML-1),

                                 0.001 mm/step (0.039 mil/step: NC code)

Mechanical resolution: 0.01 mm/step (0.39 mil/step: half step)

Spindle motor: Brushless DC motor

Spindle rotation: 4500 to 15000 rpm

Interface: USB

Power requirements: AC 100 to 240 V ±10 %, 50/60 Hz (overvoltage category: II, IEC 60664-1), 1.2 A

Power consumption: Approx. 95 W

Operating noise:

       During operation: 60 dB (A) or less (when not cutting)

       During standby: 45 dB (A) or less

External dimensions: 760(W)×900(D)×732(H) mm (29.92(W)×35.43(D)×28.82(H) in.)

Weight: 122 kg (269 lb.)

Included items: Power cord, USB cable, manual, Roland DG Software Package CD, detection pin, hexagonal screwdriver, hexagonal wrench, wrench, tool holder, tool positioner, Z0 sensor, etc.

Optional items:

Rotary Axis Unit ZCL-50

Square end-mills

Ball end-mills

Modeling wax

Chemical wood

Double-side adhesive sheet

Spindle unit

Collet

Tool holder
