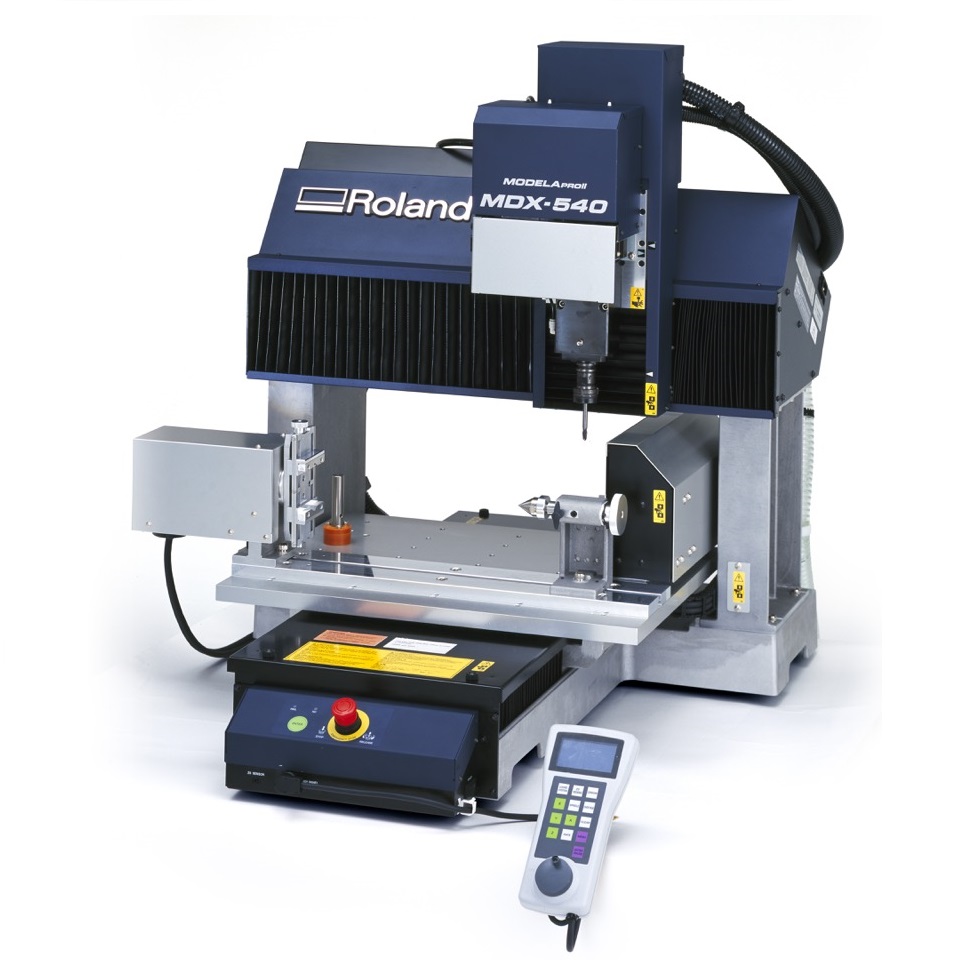

ROLAND MDX-540 铣床 (400~12000rpm)

Cuttable material: Plastic resin and light metal

XYZ-axis travels (XxYxZ): 500x400x155 mm (19.6x15.7x6.1 in.)

Distance from spindle nose to table: Maximum 254 mm (10 in.)

Table size (WxD): 550x420 mm (21.7x16.5 in.)

Loadable workpiece weight: At acceleration of 0.2 G: maximum 12 kg (26 lb.), 0.1 G: 20 kg (44 lb.), 0.05 G: 20 kg (44 lb.)

XYZ-axis drive system: AC servo motor, 60 W

Operating speed: Maximum 7.5 m/min (295 in./min)

Acceleration: 0.2 G, 0.1 G, 0.05 G

Software resolution: RML-1 mode: 0.01 mm (0.0004 in.), NC-code mode: 0.001 mm (0.00004 in.)

Mechanical resolution: 0.001 mm (0.00004 in.)

Positioning accuracy: ±0.1 mm/300 mm (±0.004 in./12 in.), under no-load conditions

Repeat accuracy: ±0.05 mm (±0.002 in.), under no-load conditions

Spindle motor: DC brushless motor, maximum 400 W

Spindle speed: 400 to 12,000 rpm; 400 to 3,000 rpm for positioning and centering

Interface: USB (compliant with Universal Serial Bus Specification Revision 1.1)

Power supply:

- Voltage and frequency: AC 100 to 120 V/220 to 240 V ±10%, 50/60 Hz

- Required power capacity: 7 A (100 to 120 V)/4 A (220 to 240 V)

Power consumption: Approx. 700 W

Acoustic noise level:

- During operation (no cutting): 65 dB (A) or less

- During standby: 40 dB (A) or less (according to ISO 7779)

Dimensions (WxDxH): 745x 955x858 mm (29.3x37.6x33.8 in.)

Weight: 102 kg (225 lb.)

Operating temperature: 5 to 40°C (41 to 104°F)

Operating humidity: 35 to 80% (no condensation)

Included items: Handy panel, power cord, tool sensor, sensor cable, nut, nut wrench, wrench, hexagonal wrench, Roland Software CD-ROM, SRP Player CD-ROM, User's Manual, Roland Software Guide, SRP Player Installation and Setup Guide, NC Code Reference Manual

Optional items:

High precision spindle unit: ZS-540TY

Automatic tool changer: ZAT-540

Rotary axis unit: ZCL-540

T-Slot table: ZTT-540

Safety cover: ZBX-540E
